Pulling Device 18-1 (58–150 mm) for Separators
The pulling device 18-1 is the powerful extension for your dismantling equipment. Designed for use with the separators of series 15 and 17, this tool offers an increased clamping spread of 58 mm to 150 mm and a clamping depth of 200 mm. It is the ideal solution to safely remove flush-fitting or thin-walled parts when conventional hooks cannot find space.
Product Benefits & Application
In combination with a separator, this tool enables the gentle pulling of ball bearings and rings that have been previously loosened from their seat. The robust construction guarantees maximum safety and power transmission.
- High performance: Developed for a maximum tensile force of 5 tons (50 kN) at a torque of up to 70 Nm.

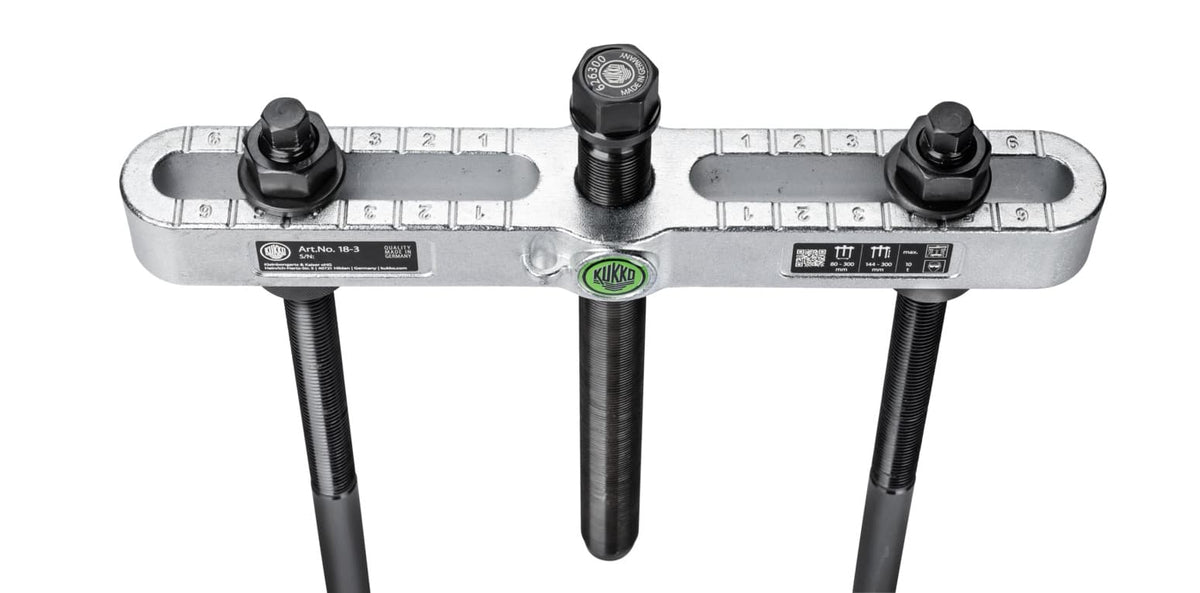

- Precise adjustment: A scale with numerical values on the crossbeam enables the exact and symmetrical alignment of the tension bolts.
- Optimized handling: The tension bolts are equipped with a wrench flat, which facilitates secure counter-holding and loosening of connections.
- Comprehensive compatibility: Suitable for separators such as 15-1 and 17-1 as well as various thread adapters.
Technical Data
| Clamping spread (min/max) | 58 – 150 mm |
|---|---|
| Clamping depth | 200 mm |
| Maximum tensile force | 5 t (50 kN) |
| Wrench size (Drive) | 19 mm |
| Maximum torque | 70 Nm |
| Weight | 2.00 kg |
| Compatibility | Series 15-1, 17-1 |
Rely on professional tools for efficient workflows in the workshop.
