Isonel® 31 J
Solvent-based, oven-drying, universal use, UL-registered
Application:
Can be used universally for impregnating windings both in the production and repair of transformers, motors, generators and alternators, as well as coils of all types and sizes. Application in mining, aviation and shipping. Suitable for use in tropical conditions. Soaking by dipping, rolling or flooding.
Description:
Insulation class: H (180°C)
Drying: 10 hours at 120°C or 6 hours at 130°C or 4 hours at 140°C or 2 hours at 150°C
Appearance: yellowish, transparent
Container sizes:

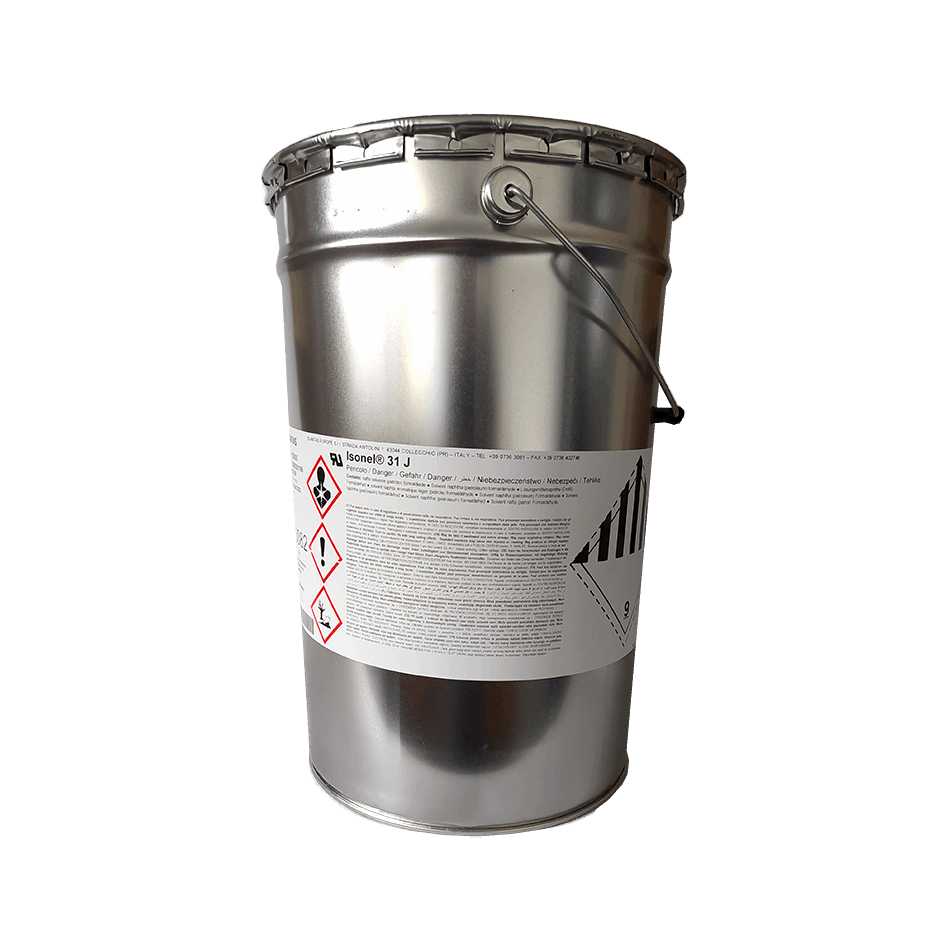

Isonel 31 J impregnation varnish: R EL 31-20 in a 20 kg container and R EL 31-200 in a 180 kg drum
Dilution 210: R V 210-5 in a 5 kg container and R V 210-20 in a 20 kg container
Special features:
- elastic molding material
- good mechanical properties
- good dielectric properties
- low baking temperatures
- UL - approved
- maximum temperature index 200°C
- good storage stability
