Description

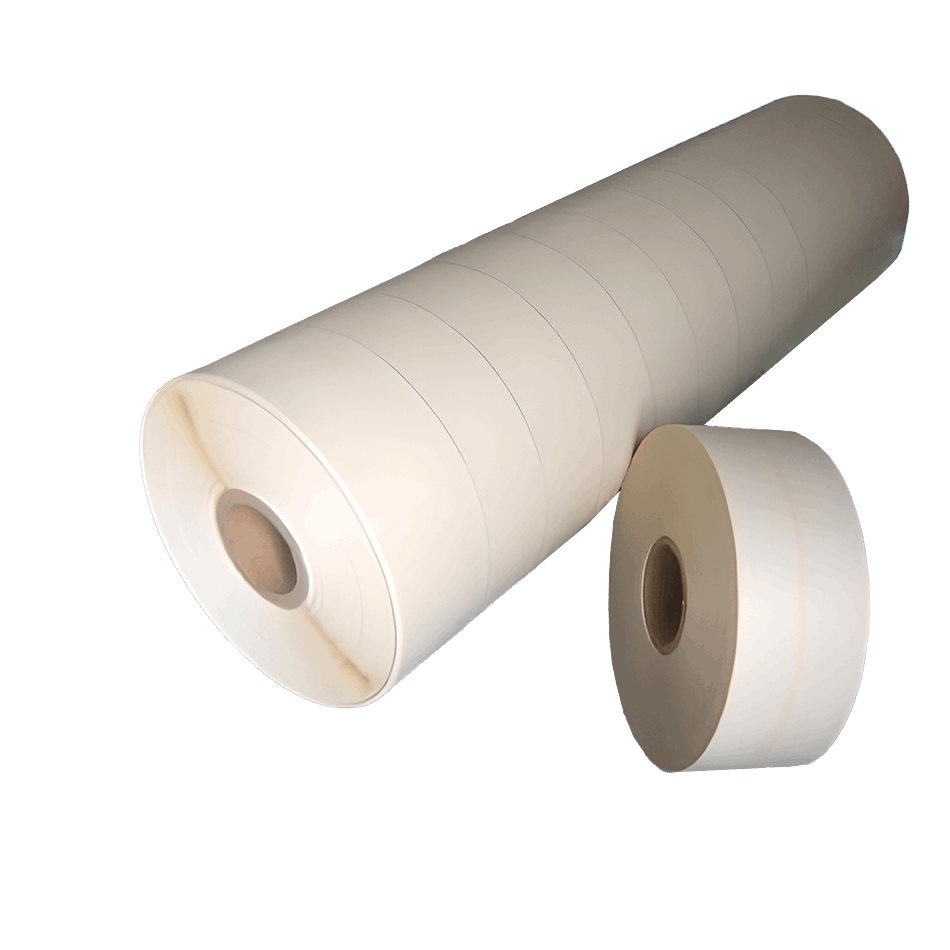

Temperatures up to 200° have little effect on the electrical properties of Nomex® 410. Mechanical properties can be extrapolated from considerably higher temperatures.
Due to the polymer structure, Nomex® 410 can be used very well at temperatures down to -190° C. Nomex® 410 has a high short-term dielectric strength.
The continuous field strength should not exceed 1.5 kV/mm. Nomex® 410 is compatible with all grades of common resins, paints, adhesives, as well as transformer fluids, lubricating oils and coolants. Common solvents can lead to slight reversible swelling. Nomex® 410 is flame retardant (UL94V-0) and has very high beta and gamma radiation resistance.
Nomex® 410 is used in all known applications for electrical surface insulation materials (AC and DC motors to large generators, liquid and dry-type transformers and chokes),
Nomex® 410 can be stored indefinitely under normal conditions (20° C, 50% r.h.).
If necessary, please request separately:
Tapes from 10mm width, panels, slot insulation, cover slides, caps, phase insulation, coil insulation, end plates, stamped parts and cuts.
Please send your request to:
verkauf@seipp-gmbh.de
A legally binding assurance of certain properties or the suitability for a specific purpose cannot be derived from the information provided above.
