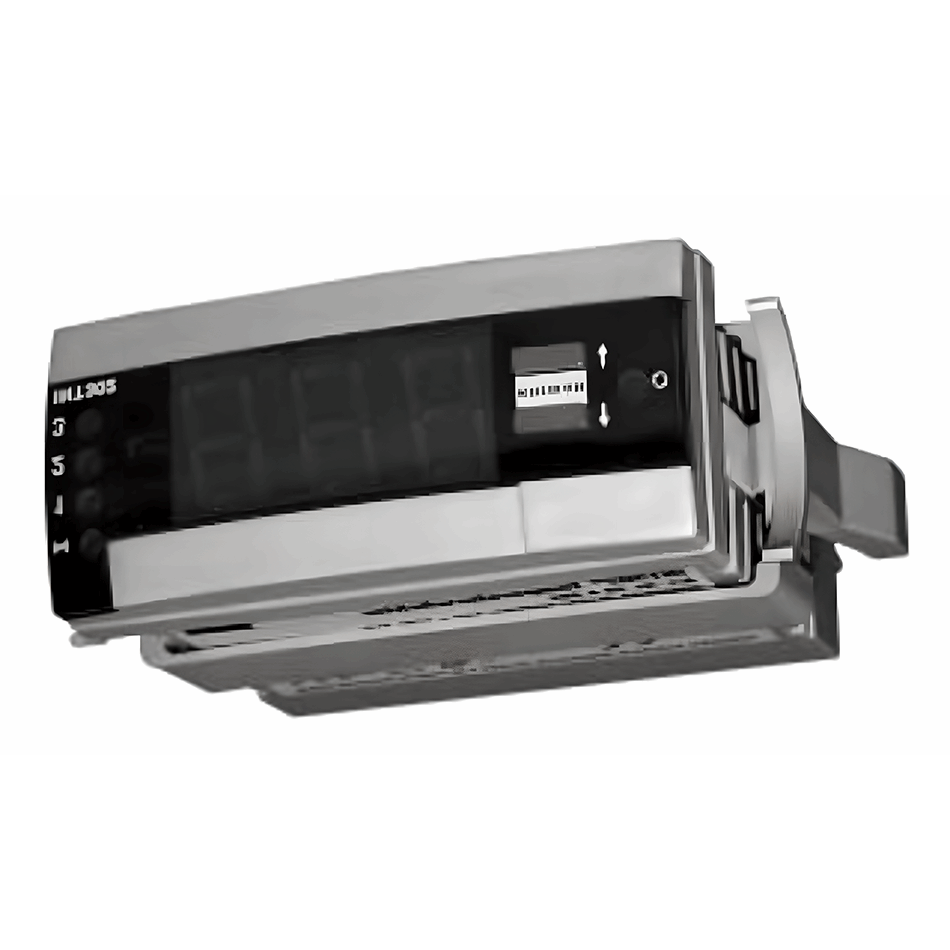

PT 100 compact computer "INT 301":
Temperature monitor -50°C to +250°C for 3 x PT 100 sensors
| Application | Electrical machines |
| Features | 2 Operating modes, early warning and switch-off threshold |
| Supply voltage | AC 24V |
| Permitted ambient temperature | -20... +60°C |
| Measuring range | -50… +250°C (dissolution 1K) |
| Accuracy | ±1% |
| Temperature measuring circuit: type | Pt100/Pt1000 according to EN 60751 |
| Relay: Contact | AC 250V 6A resistive, 3A inductive, 300VA inductive |
| Relay: mechanical lifespan | approx. 1 million switching cycles |
| Protection class according to EN 60529 | IP65 |
| Housings material | ABS |
| Attachment | Front panel mounting |
| Analog input | 4...20mA, passive |
| Analog output | 0(4)… 20mA, active burden < 500Ω |
| Dimensions | 74 x 34 x 85mm |
| Weight | approx. 130g |
