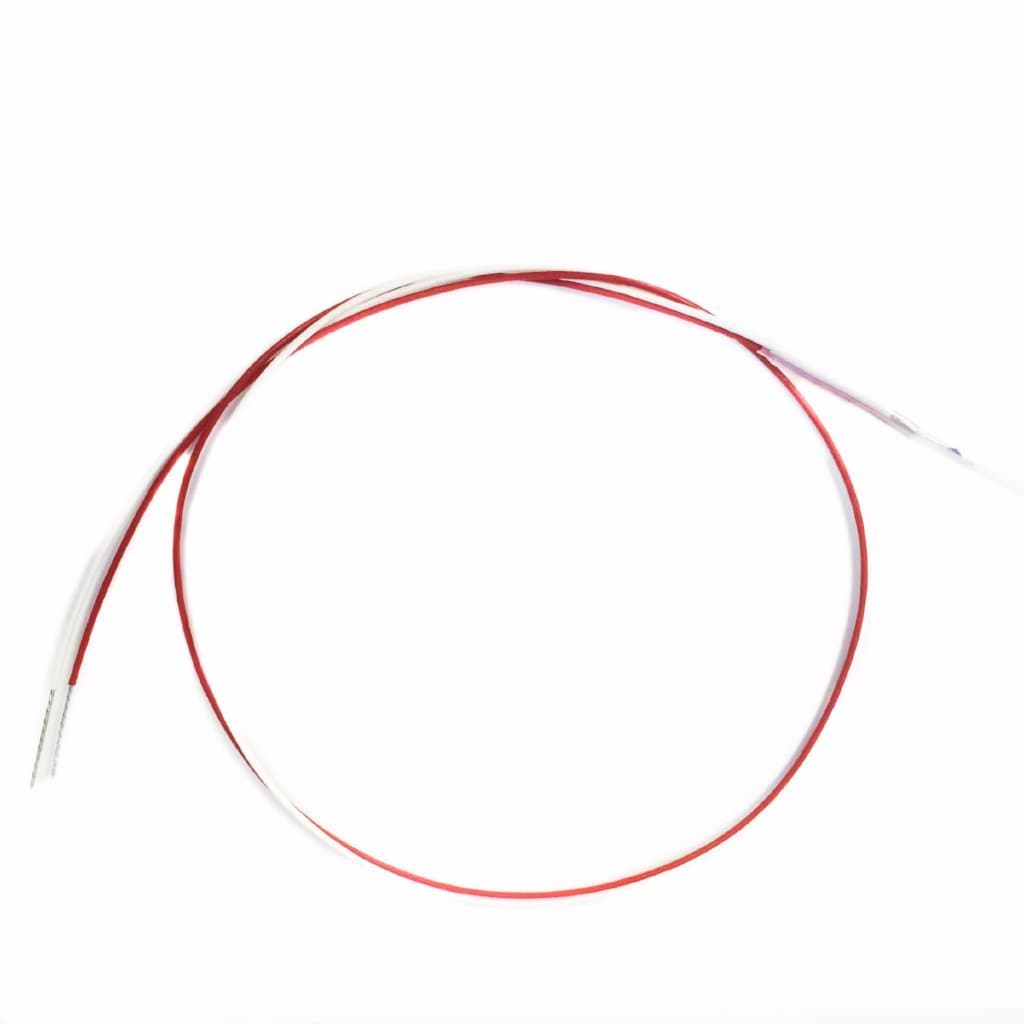

PT 1000 Temperature Sensor for Winding Installation (2-Wire)
The PT 1000 temperature sensor is specifically designed for precise temperature measurement in windings of electric motors, generators, and transformers. Its particularly small dimensions ensure a fast thermal response.
Your Benefits – Precise Protection against Thermal Overload
- Precise Monitoring: In combination with an evaluation unit, it effectively protects against thermal overload or serves to document the actual temperature value.
- Standardized Accuracy: The characteristic curve is nearly linear and standardized according to EN 60751, which allows for simple signal evaluation.
- Reliable Properties: Offers the known strengths of Pt sensors regarding long-term stability, interchangeability, and accuracy.
- Minimal Space Requirement: Extremely small space requirement, ideal for winding installation.
Complement your winding tools: See our measuring tools.
Technical Data – PT 1000 Versions
The function is based on the temperature-dependent change in the electrical resistance of platinum.
| Version | Temperature Range | Connection Lead | Special Feature |
|---|---|---|---|
| PT 1000 (Standard) | From -50 °C to +200 °C | PTFE wire AWG 24/7, length 500 mm | Tinned wire end |
| PT 1000 (Sleeve) | From -40 °C to +200 °C | PTFE wire AWG 24/70, length 500 mm | Tinned wire end, with stainless steel sleeve |
The sensors are available in 2-, 3-, and optionally 4-wire technology.
Ensure Thermal Safety with Seipp
The PT 1000 temperature sensor offers maximum precision and reliability for thermal monitoring of your windings. Rely on this standard according to EN 60751 and order the appropriate 2-wire version for your application now.
