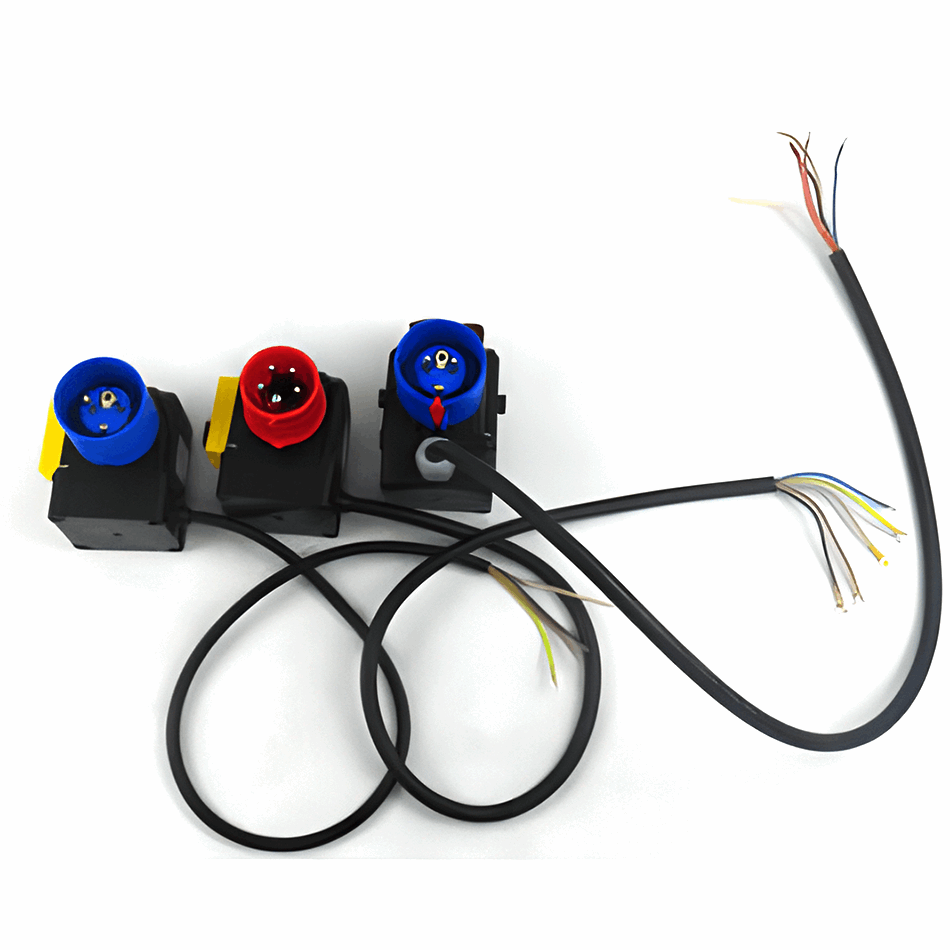

Switch-plug combinations

Price on request

Request a personalized quote

By ordering this item, you are submitting a non-binding request for a quote. Our sales team will then contact you personally with a price quote.

Seipp number SSK-BM 410 SSK-EB 02 SSK-BM 820 SSK-EB 05

Crowd: 5 pieces 10 pieces

Beschreibung

SSK-BM 410	2-pin with Schuko plug 230 volts, 1 m connecting cable H 07RN-F 6G1.0, 2 pressure switches with splash water protection cap, undervoltage release without motor protection, connection option for temperature monitor, Brake electronics = up to 15 amps, switching capacity = 3.0 KW, IE = 13.5 amps / 250 volts, UC = 230 volts / 50 Hz, Protection class = IP 54, mounting dimensions = 68 x 68 mm
SSK-EB 02	Design like SSK-BM 410, WITHOUT brake electronics, 1 m connecting cable H 07RN-F 4G1.0 but lower height

SSK-BM 820	5-pin CEE collar plug 3P+N+E 400 volts, 1 m connecting cable H 07RN-F 6G1.0; 2 pressure switches with splash water protection cap, undervoltage release without motor protection, connection option for temperature monitors, with potentiometer brake max. 15 amps, switching capacity = 4.0 kW, IE = 9 amps / 400 volts, UC = 400 volts / 50 Hz, protection class = IP 54, mounting dimensions = 68 x 68 mm
SSK-EB 05	Design like SSK-BM 820, WITHOUT brake electronics, UC = 400 volts / 50 Hz, 5-wire, but lower height
