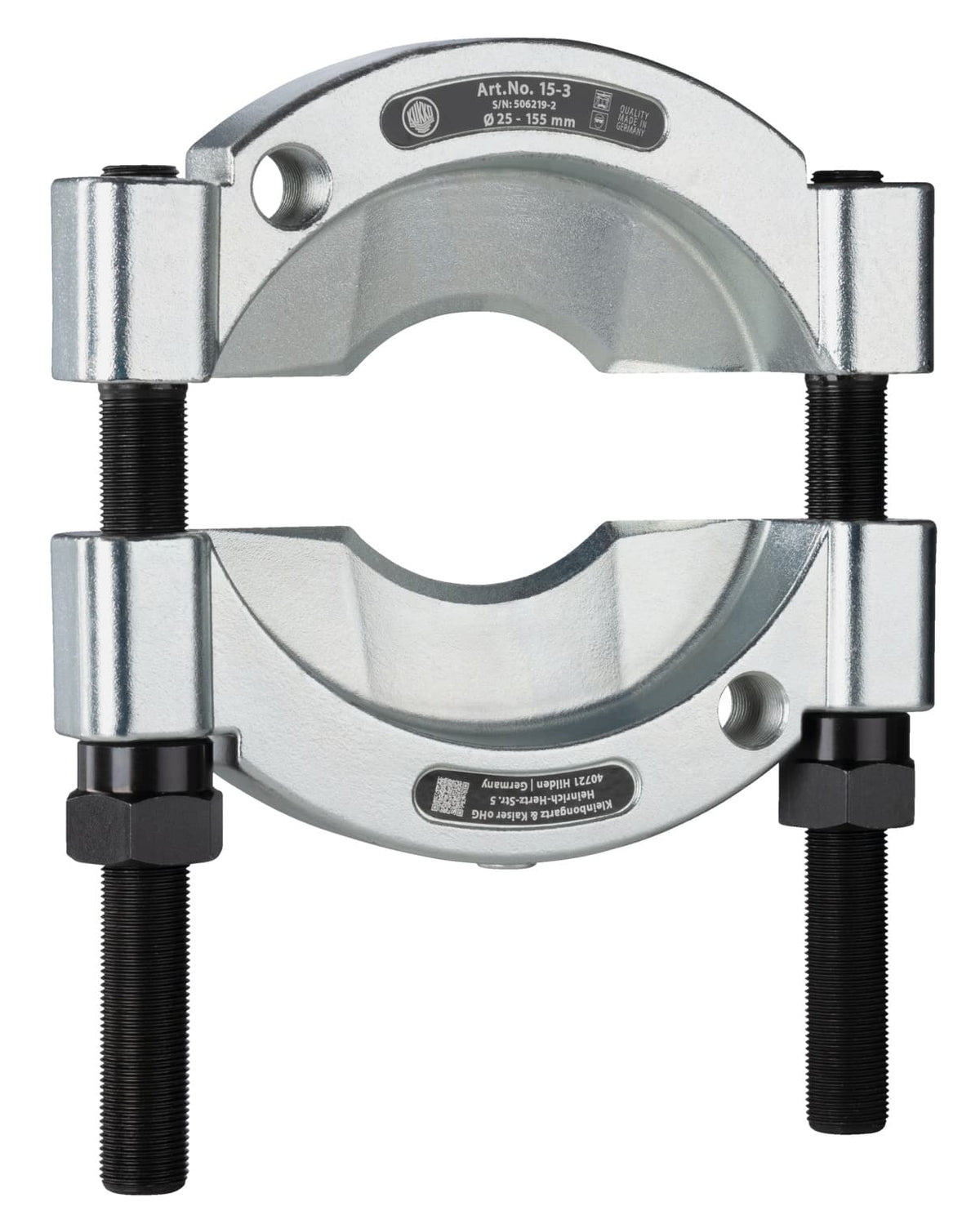

Separator 15-3 (30–150 mm) for Large Diameters
The Separator 15-3 is the robust solution for heavy dismantling work in industry and commercial vehicle technology. With a large separating range of 30 mm to 150 mm, this tool enables the safe separation of large-sized, flush-fitting ball bearings and inner rings where conventional pulling methods find no purchase.
Product Benefits & Application
The proven separating-pulling process combines high power transmission with maximum protection of the components. The massive, wedge-shaped blades penetrate under the seized part, loosen it from the seat, and prepare it for pulling.
- Maximum capacity: Designed for large diameters up to 150 mm and high loads.
- System compatibility: Specially developed for use with the pulling devices of series 18 (models 18-3 and 18-3-B).
- Massive construction: With 5.30 kg net weight and 50 mm usable blade depth for the toughest applications.
- Precise handling: Despite the size, the minimum gap height of 0.5 mm allows for an exact approach.
- Certified quality: Transparent CO₂ footprint and global distribution capability (REACH, RoHS compliant).
Technical Data
| Separating diameter (min/max) | 30 – 150 mm |
|---|---|
| Usable blade depth | 50 mm |
| Mounting thread (Tension bolt) | M18x1.5 |
| Wrench size (Drive) | 32 mm |
| Weight | 5.30 kg |
| Distance between side bolts | 78 mm |
| Minimum gap height | 0.5 mm |
Trust in heavy industrial quality for your maintenance work.
