Description

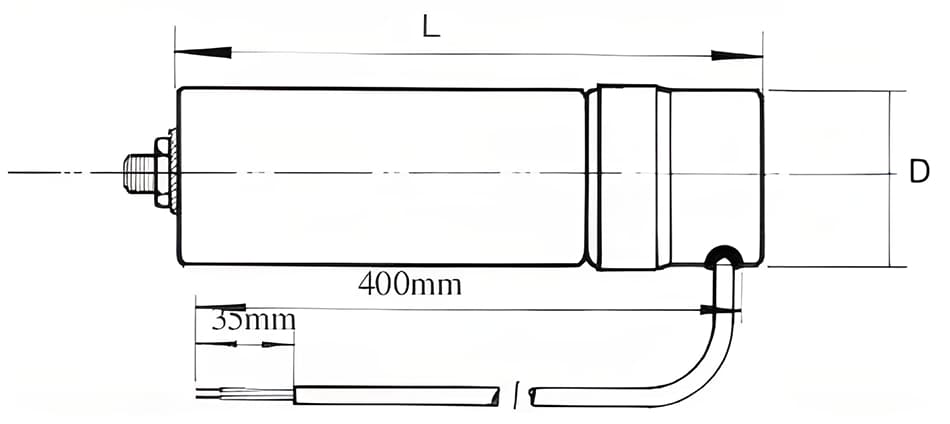

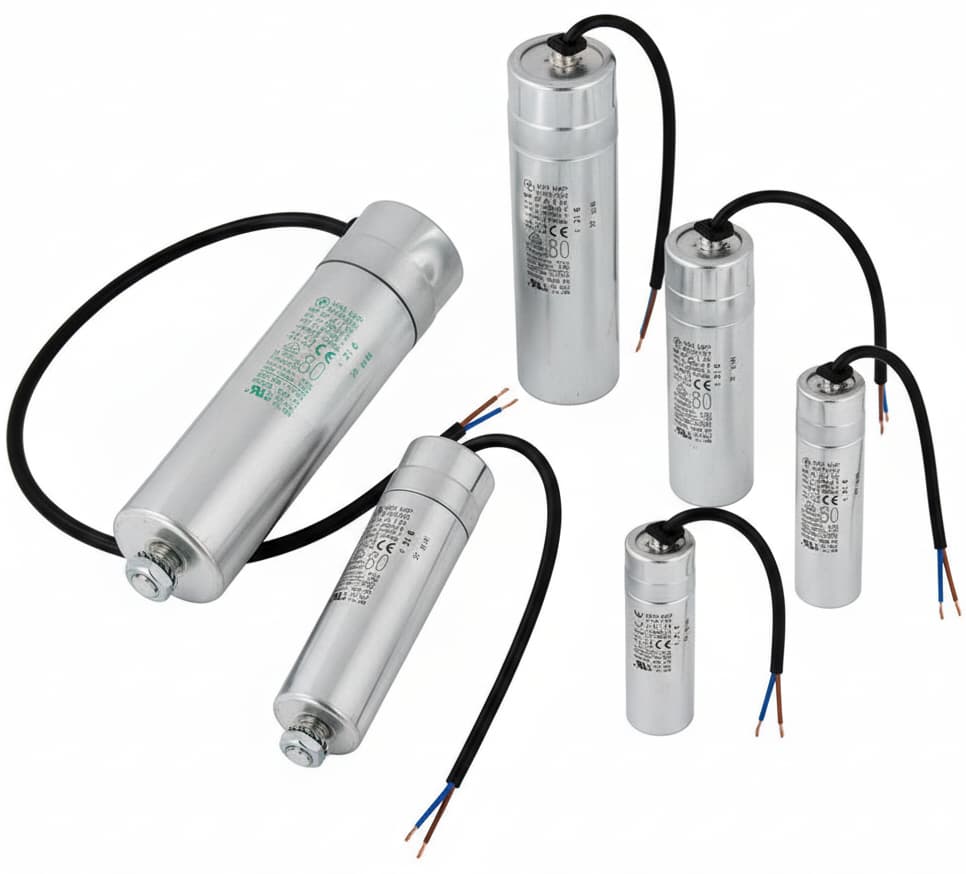

Motor capacitors in aluminum round cups, 400 - 450 volts, with cable type
H03VV-F300-040-7AH3, attachment: bolt, nut and toothed washer mounted
Thanks to an integrated overload protection, capacitors in aluminum cups offer another high level of safety of safety class P2 - flameproof, burst-proof, interrupting.
Installation: any
When installing the capacitor, ensure that the upper limit temperature specified on the capacitor is not exceeded at any point on the capacitor housing. If the overload protection integrated in the aluminum cup responds, the housing extends up to 10 mm in the longitudinal direction. This space must be taken into account during installation.
The mounting bolt can be removed for installation.
H03VV-F300-040-7AH3, attachment: bolt, nut and toothed washer mounted
Thanks to an integrated overload protection, capacitors in aluminum cups offer another high level of safety of safety class P2 - flameproof, burst-proof, interrupting.
Installation: any
When installing the capacitor, ensure that the upper limit temperature specified on the capacitor is not exceeded at any point on the capacitor housing. If the overload protection integrated in the aluminum cup responds, the housing extends up to 10 mm in the longitudinal direction. This space must be taken into account during installation.
The mounting bolt can be removed for installation.
