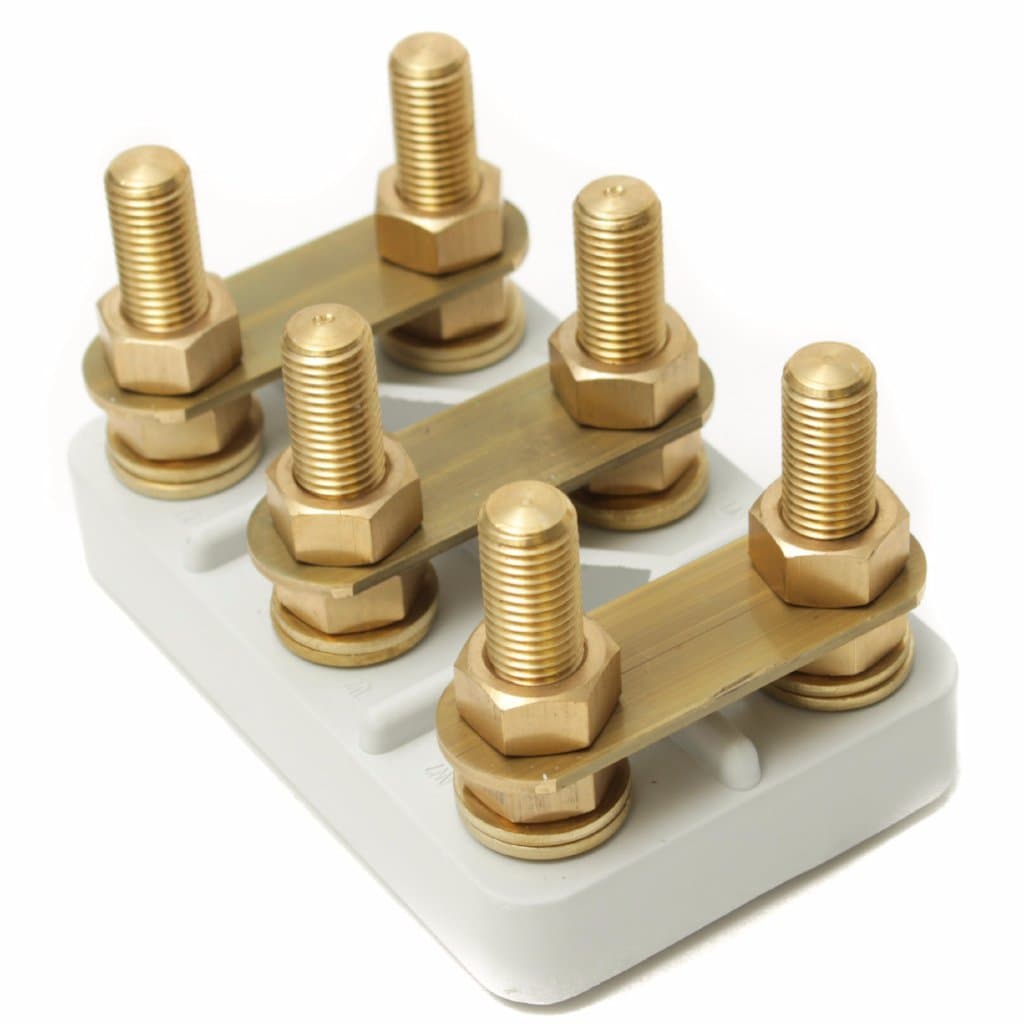

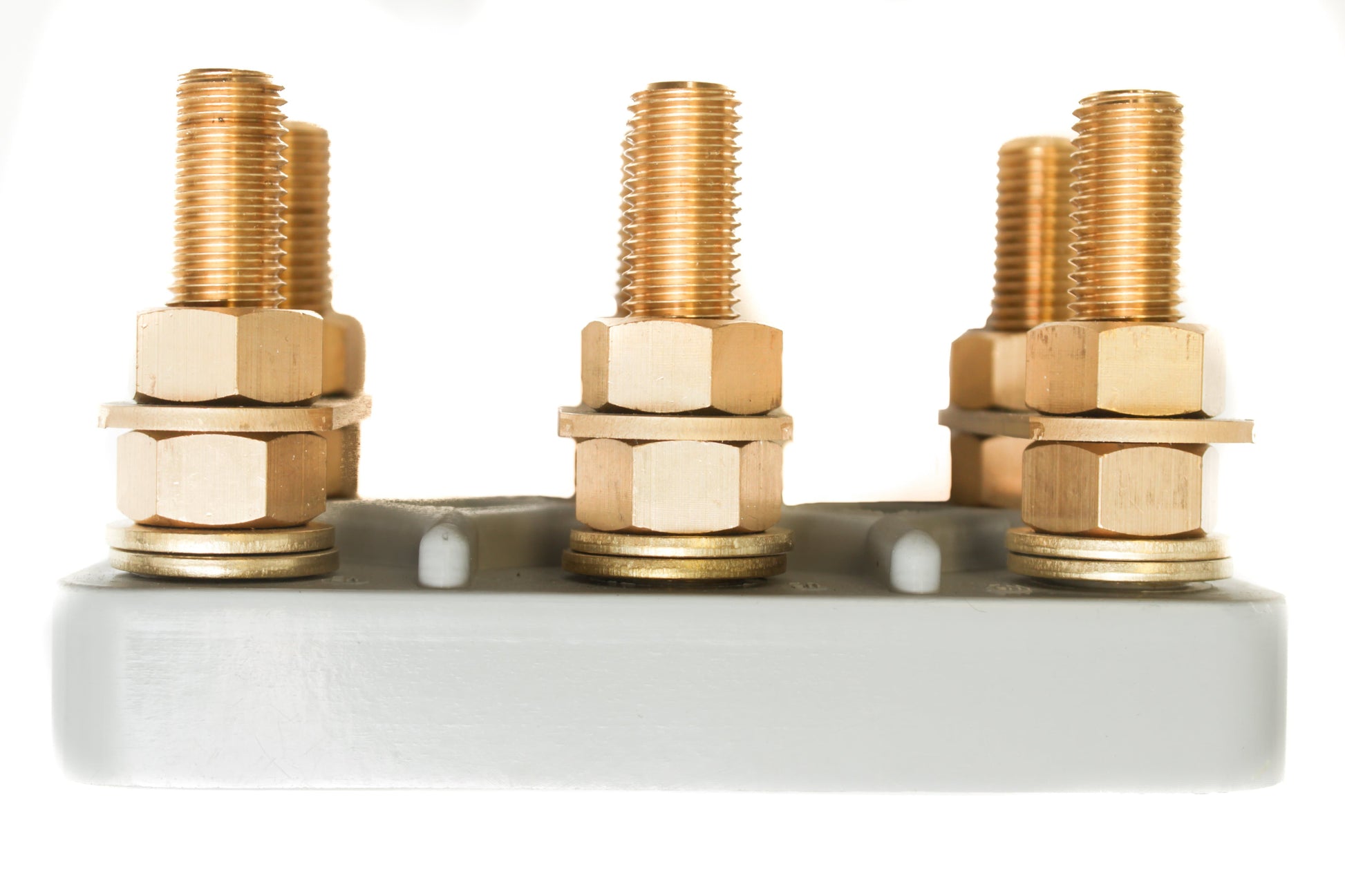

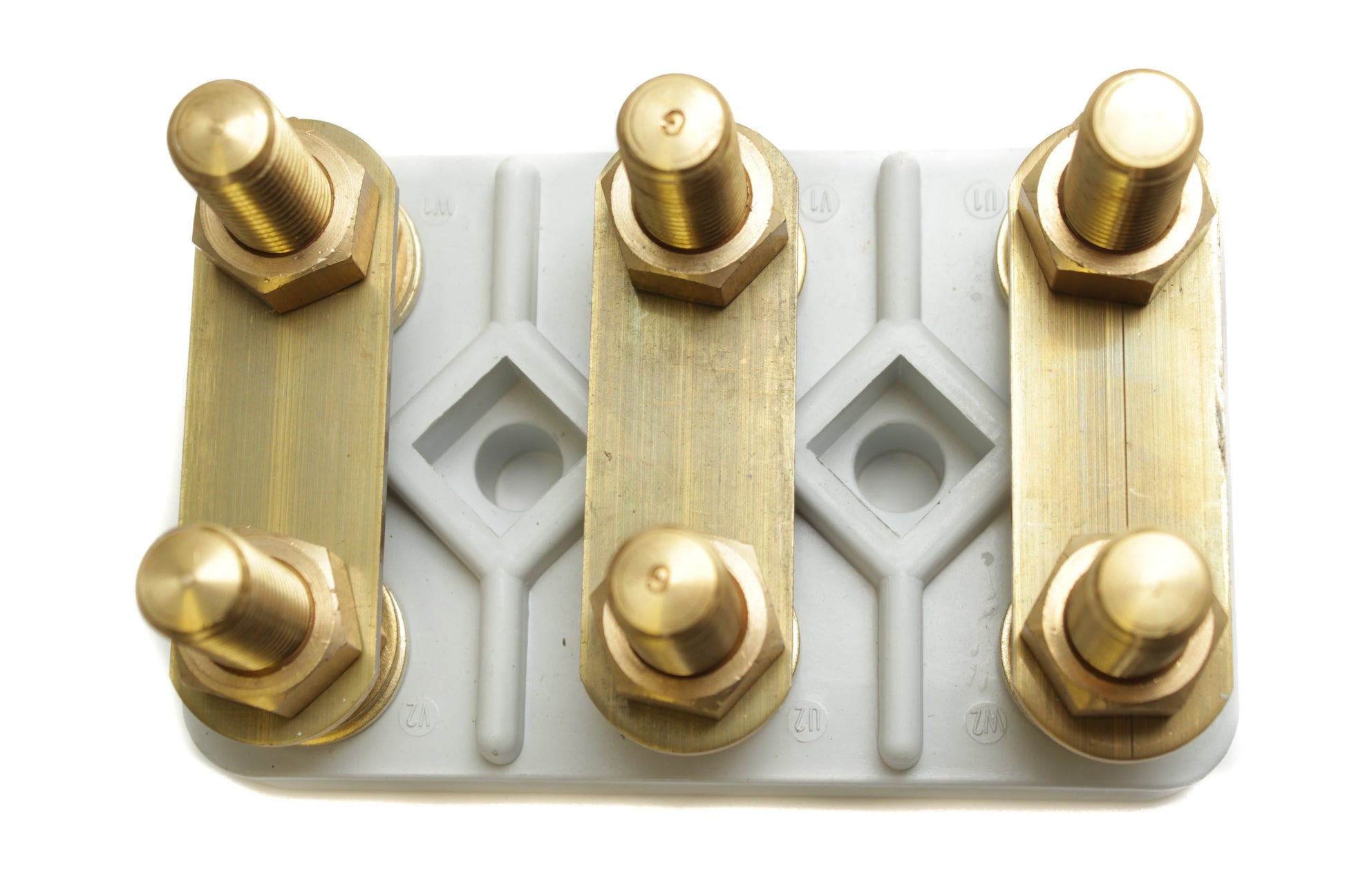

Description
|
Order no. |
L |
B |
H |
a |
c |
D |
d |
e |
h |
M |
t |
|
KM 4 |
54 |
34 |
13 |
20 |
20 |
10 |
5,5 |
20 |
15 |
M4 |
5 |
|
KM 5 |
64 |
40 |
13 |
23 |
23 |
12 |
5,5 |
23 |
19 |
M5 |
5 |
|
KM 6 |
78 |
48 |
16 |
28 |
28 |
11 |
6,5 |
28 |
24 |
M6 |
6 |
|
KM 8 |
96 |
60 |
18 |
35 |
35 |
15 |
9 |
35 |
28 |
M8 |
8 |
|
KM 10 |
120 |
75 |
22 |
45 |
45 |
18 |
11 |
45 |
35 |
M10 |
10 |
|
KM 12 |
150 |
95 |
25 |
55 |
55 |
|
|
|
|
M12 |
|
|
KM 16 |
160 |
100 |
30 |
85 |
85 |
|
|
|
|
M16 |
|
Threaded bolts: 6 pcs.

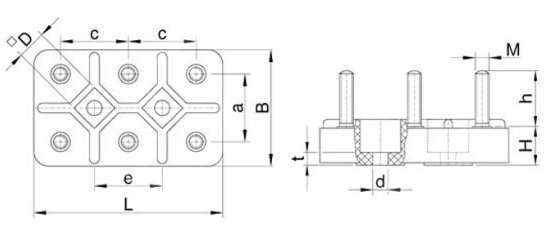

H=moulding material/total height
mounting hole distance in mm
