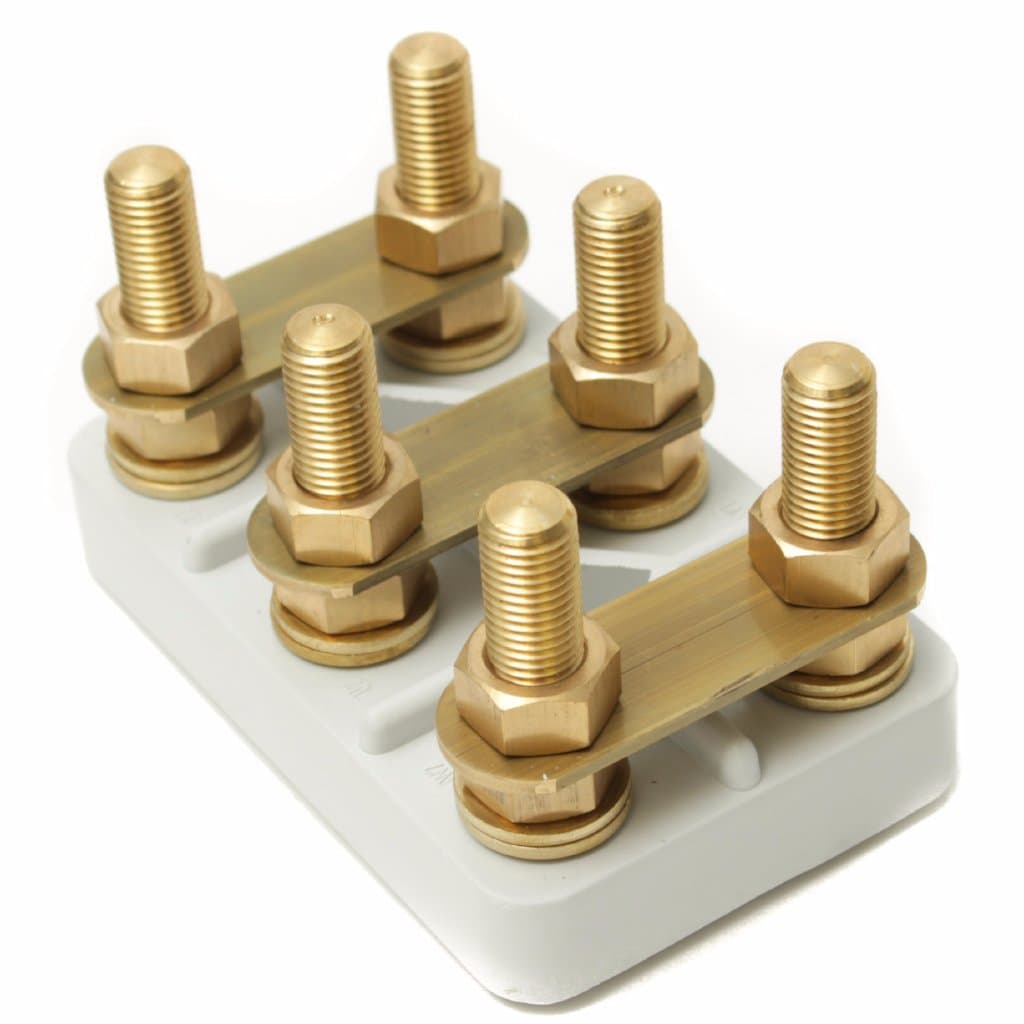

Description
6-poles, thermal class F, UL-listed
|
Order no. |
L |
B |
H |
a |
c |
D |
d |
e |
h |
M |
t |
|
KB 205 |
40 |
25 |
9 |
15 |
15 |
8 |
4,3 |
11 - 19 |
10 |
M3 |
6 |
|
KB 216 |
43 |
27 |
10 |
16 |
16 |
8 |
4,3 |
12 - 20 |
12 |
M4 |
6 |
|
KB 225 |
56 |
36 |
11 |
20 |
20 |
10,5 |
5,3 |
15 - 25 |
16 |
M5 |
7,5 |
|
KB 230 |
70 |
45 |
13 |
25 |
25 |
11,5 |
6,4 |
20 - 32 |
17 |
M6 |
6 |
|
KB 250 |
95 |
60 |
17 |
35 |
35 |
15 |
9 |
30 - 53 |
28 |
M8 |
11 |
|
KB 255 |
120 |
75 |
20 |
45 |
45 |
18,5 |
11 |
31 - 59 |
35 |
M10 |
12 |

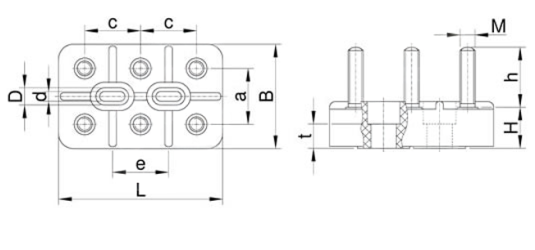

Measurement LxBxH mm (H=moulding material/total height)
Mounting slot distance in mm
