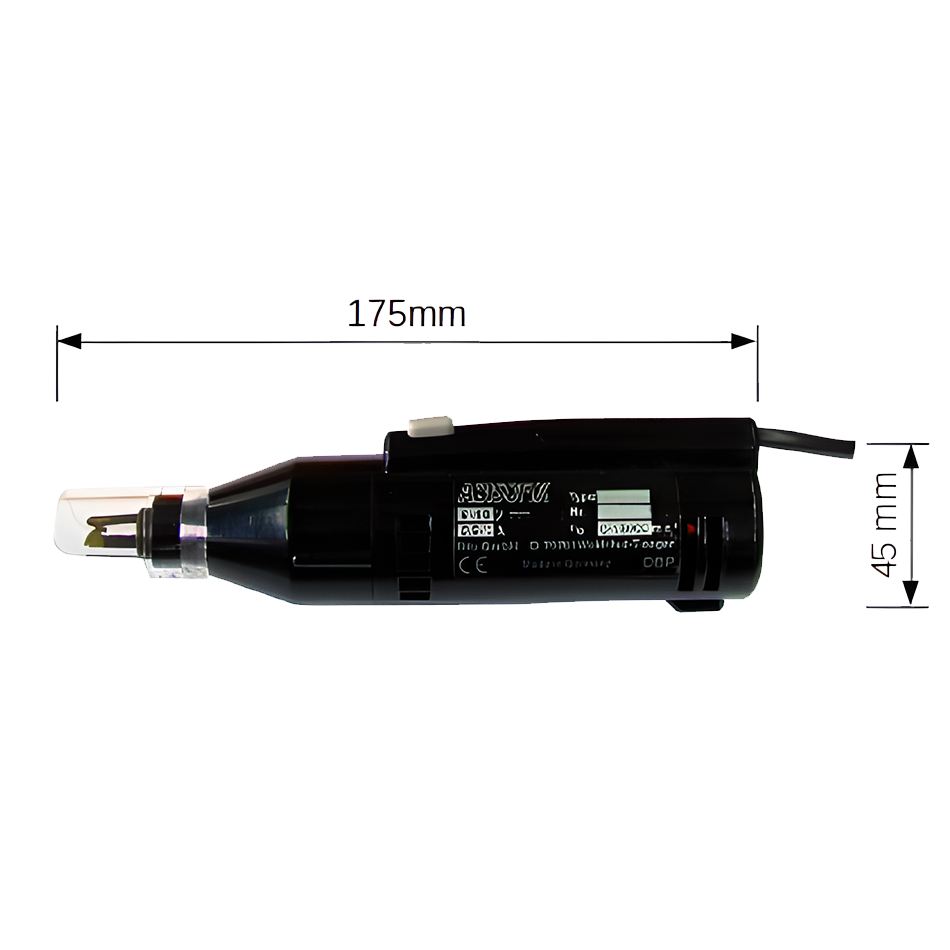

AFFLM 3/5
Stripping of strands or wires with thick-walled insulation. Only available with length stop and knife limiter.
Type 3 = for wire Ø of 0.6-4.0 mm
Type 5 = for wire Ø of 2.0-5.0 mm

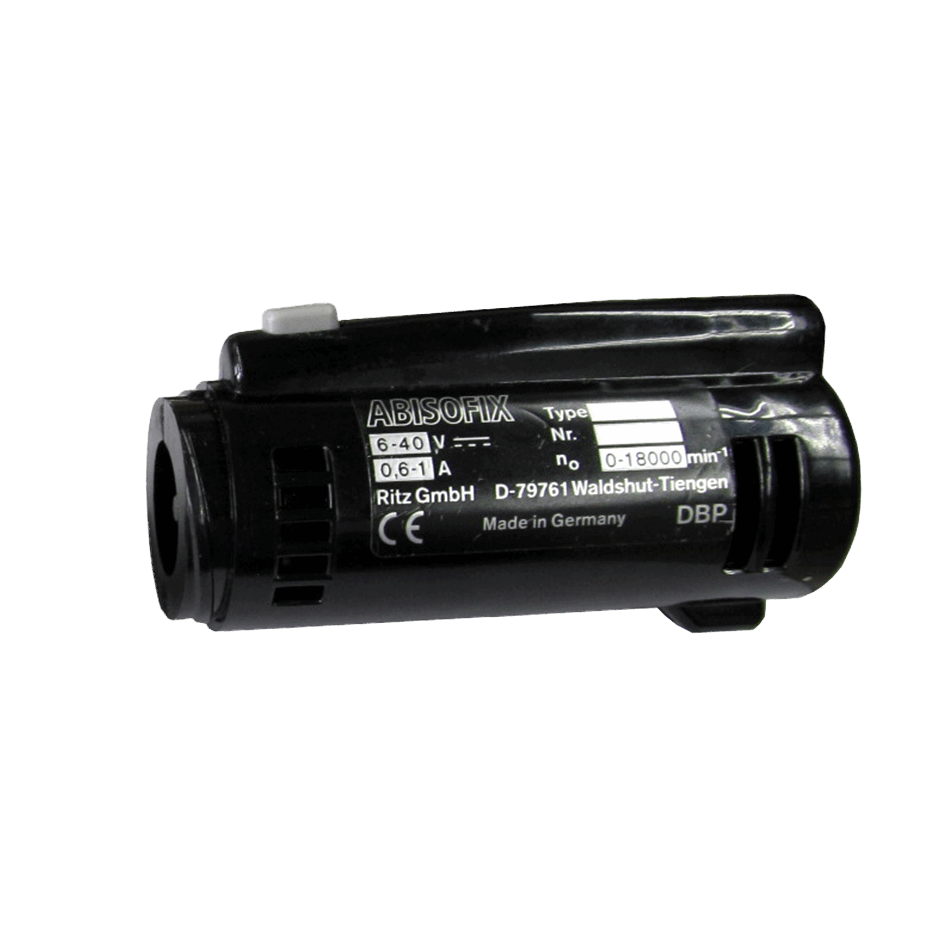

The principle of the ABISOFIX device:

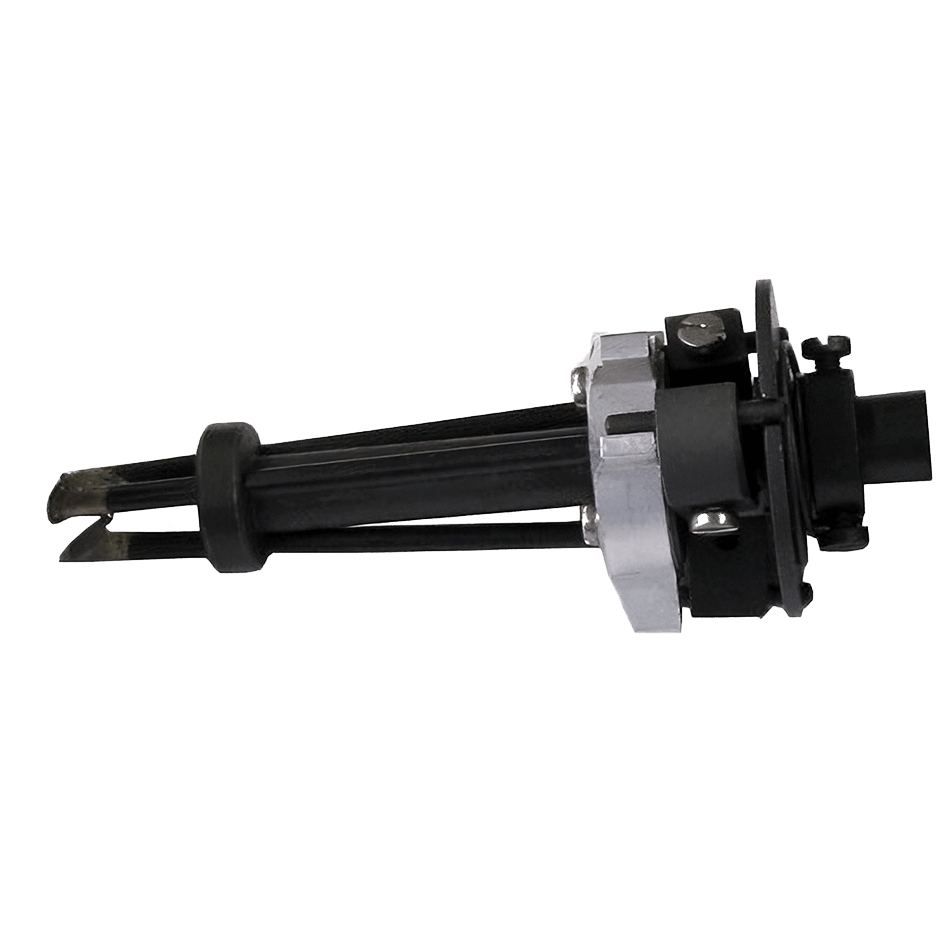

Three carbide knives close with increasing rotation speed from the largest to the smallest diameter. Due to the gentle start-up, the knives do not close abruptly, but nestle gently against the material to be stripped and only then increase the necessary cutting pressure. With the stepless adjustment of the rotation speed, the knives only close up to a certain diameter.
For example, the thin insulation layer of enamelled copper wire is still removed while the copper itself is hardly attacked.
The steplessly adjustable power supply enables an optimal working speed and synchronization of the motor (no juddering).
Stripping of strands or wires with thick-walled insulation. Only available with length stop and knife limiter.
Type 3 = for wire Ø of 0.6-4.0 mm
Type 5 = for wire Ø of 2.0-5.0 mm
The principle of the ABISOFIX device:
Three carbide knives close with increasing rotation speed from the largest to the smallest diameter. Due to the gentle start-up, the knives do not close abruptly, but nestle gently against the material to be stripped and only then increase the necessary cutting pressure. With the stepless adjustment of the rotation speed, the knives only close up to a certain diameter.
For example, the thin insulation layer of enamelled copper wire is still removed while the copper itself is hardly attacked.
The steplessly adjustable power supply enables an optimal working speed and synchronization of the motor (no juddering).
