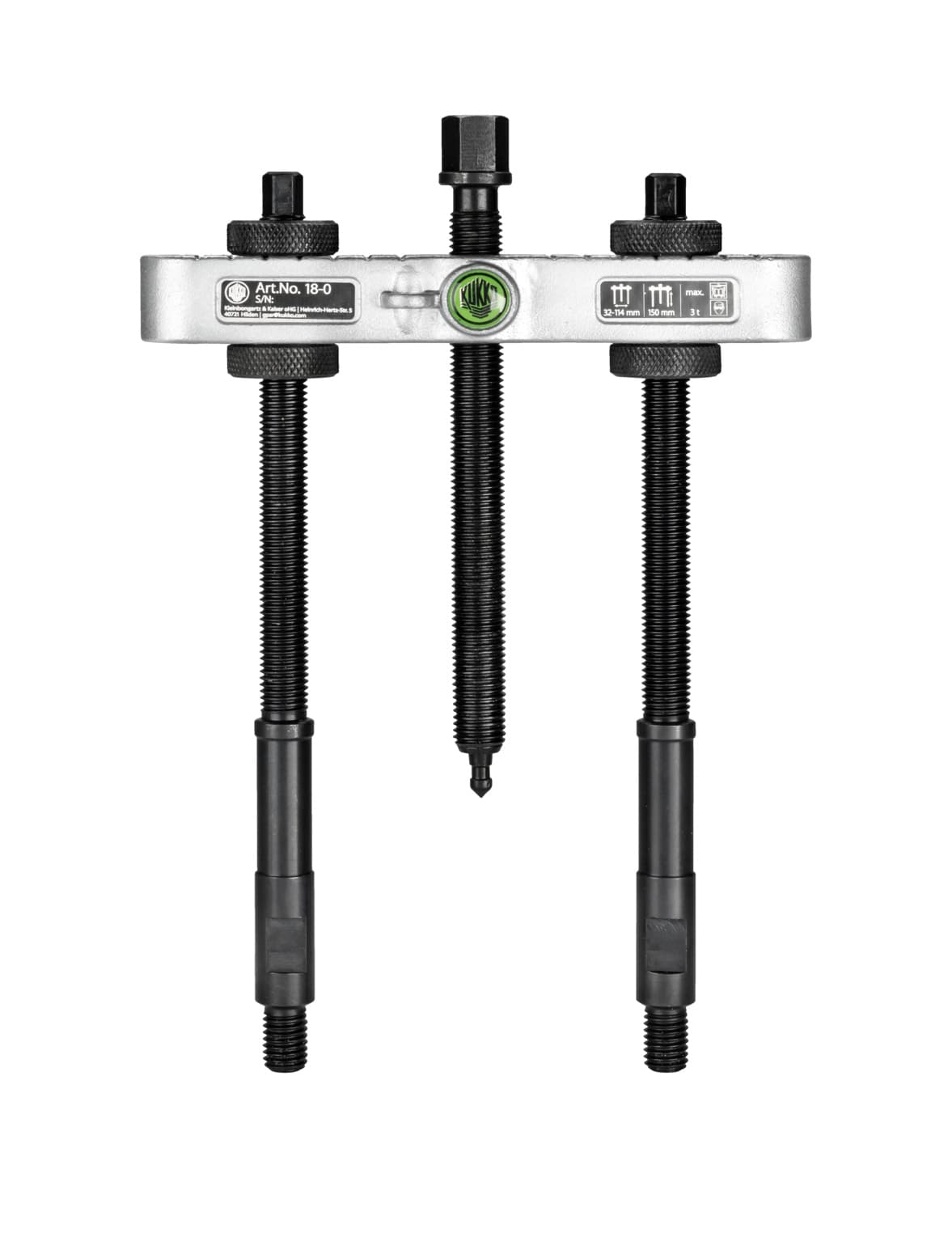

Pulling Device 18-0 (32–114 mm) for Separators
The pulling device 18-0 is the essential complement to the separators of the series 15-0 and 17-0. It is used wherever conventional pulling hooks cannot grip due to lack of space. With a clamping spread of 32 mm to 114 mm and a clamping depth of 150 mm, it enables the powerful pulling of pre-loosened ball bearings, roller bearings, and inner rings.
Product Benefits & Application
In the system with a separator, flush-fitting parts are first separated and then pulled off with this device. The design is aimed at user-friendliness and safety.
- Precise adjustment: A clearly readable scale with numerical values on the crossbeam facilitates the symmetrical adjustment of the tension bolts.
- Secure handling: The tension bolts feature an integrated wrench flat, which significantly simplifies counter-holding and loosening the connections.
- High performance: Despite the compact design, the tool offers a maximum tensile force of 3 tons (30 kN) at a maximum torque of 40 Nm.
- System compatibility: Perfectly matched to separators like 15-0 and 17-0.
Technical Data
| Clamping spread (min/max) | 32 – 114 mm |
|---|---|
| Clamping depth | 150 mm |
| Maximum tensile force | 3 t (30 kN) |
| Wrench size (Drive) | 13 mm |
| Maximum torque | 40 Nm |
| Weight | 0.82 kg |
| Compatible separators | 15-0, 17-0 |
