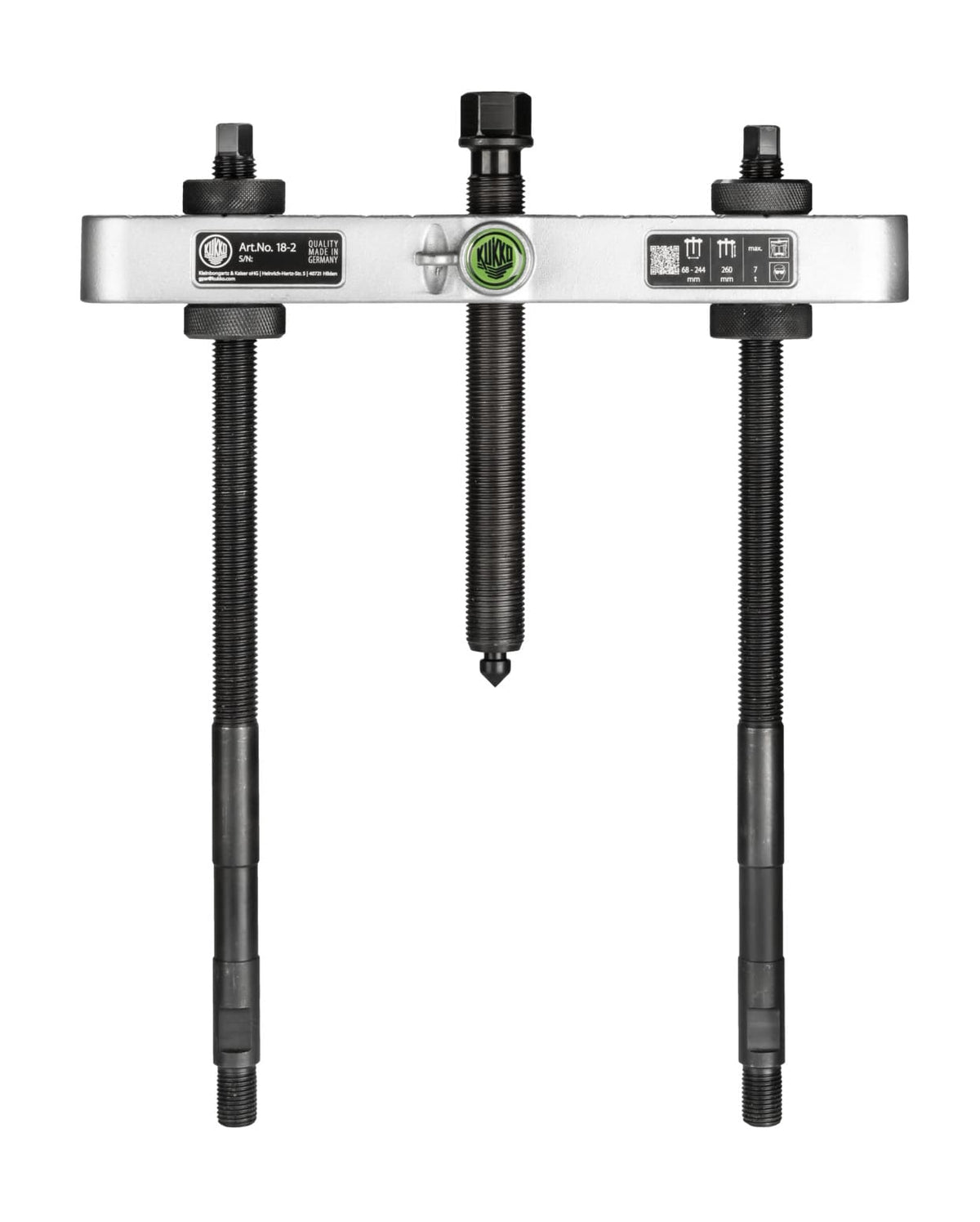

Pulling Device 18-2 (68–244 mm) for Separators
The pulling device 18-2 is the powerful link for industrial dismantling processes. Developed for use with the separators of series 15 and 17, this tool covers a clamping range of 68 mm to 244 mm. With a clamping depth of 260 mm, it is excellently suited to safely pull off seized, flush-fitting parts where standard hooks cannot find access.
Product Benefits & Application
This tool is used after parts have been pre-loosened by a separator. The design is optimized for high power transmission and user safety to work reliably even with tight fits.
- Powerful pulling: Designed for a maximum tensile force of 7 tons (70 kN) at a maximum torque of 120 Nm.

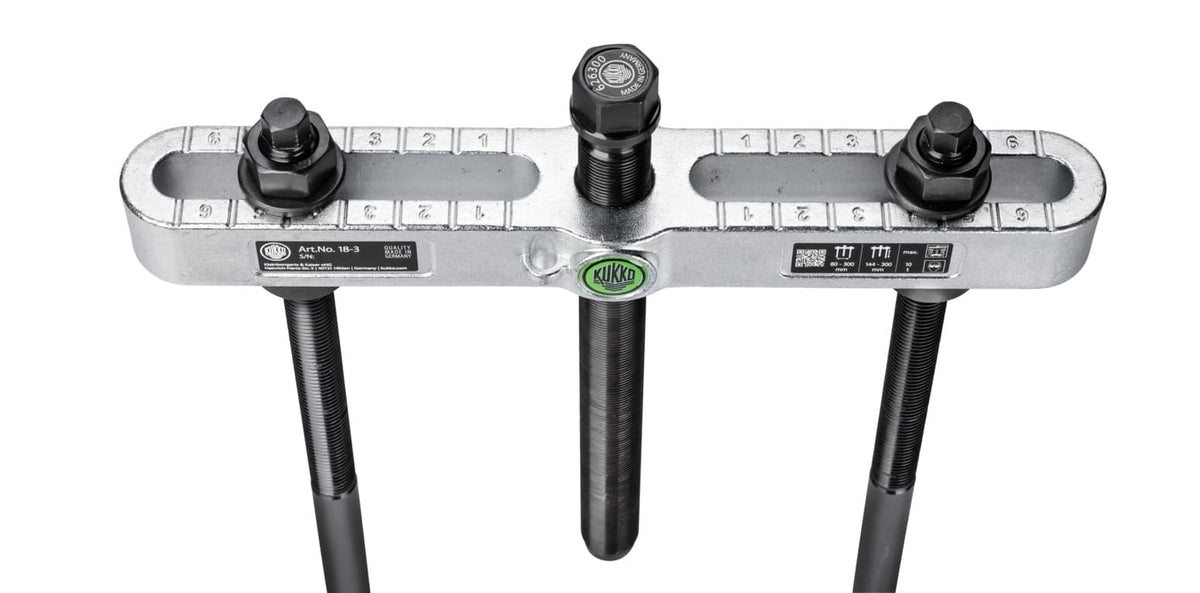

- Precise adjustment: The crossbeam features a laser-engraved scale with numerical values, allowing for exact and centered adjustment of the tension bolts.
- Maintenance-friendly: Integrated wrench flats on the tension bolts facilitate the tight screwing and loosening of the connections.
- System compatibility: Ideally matched to separators 15-2 and 17-2 as well as compatible with various adapters (e.g., 18-208A to 18-218A).
Technical Data
| Clamping spread (min/max) | 68 – 244 mm |
|---|---|
| Clamping depth | 260 mm |
| Maximum tensile force | 7 t (70 kN) |
| Wrench size (Drive) | 22 mm |
| Mounting thread | M14x1.5 |
| Maximum torque | 120 Nm |
| Weight | 3.24 kg |
Ensure maximum efficiency and safety in your dismantling work.
