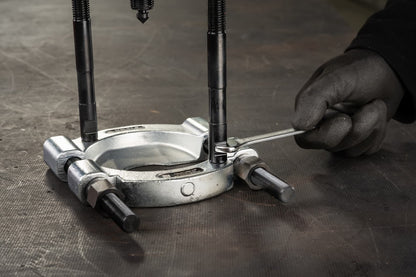

Pulling Device 18-3 (75–310 mm) for Heavy-Duty Separation
The pulling device 18-3 is the powerhouse of the series and specifically designed for heavy industrial applications. In combination with the separators of the series 15-3 and 17-3, this tool handles a clamping range of 75 mm to 310 mm. With a massive clamping depth of 300 mm and a tensile force of up to 10 tons, it safely and efficiently removes even extremely seized, flush-fitting components.
Product Benefits & Application

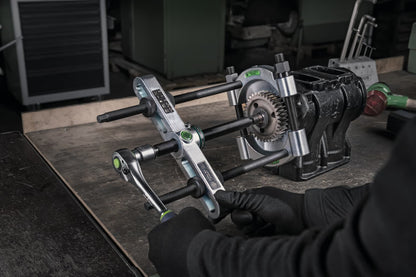

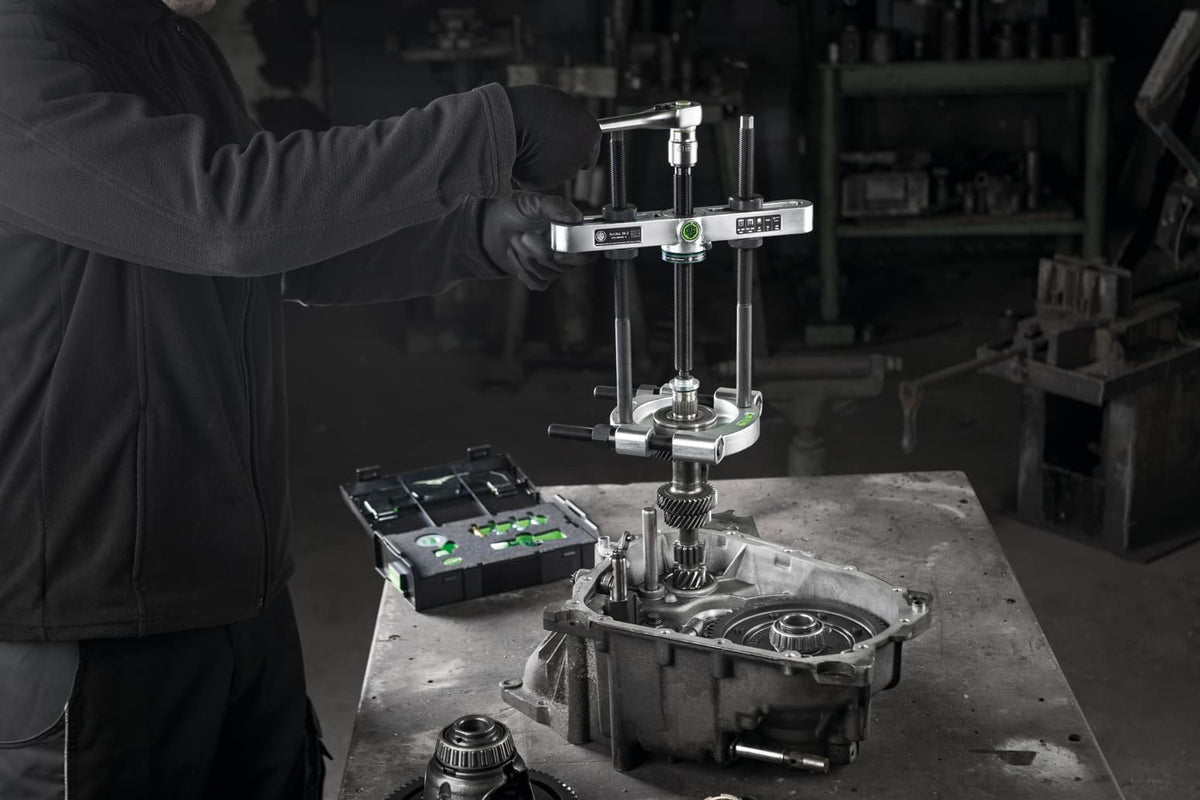

This tool is optimized for tough everyday workshop life and the maintenance of large machinery and commercial vehicles. It takes over the pulling of parts that have previously been loosened by a separating process.
- Maximum power: Designed for an enormous tensile force of 100 kN (10 t) and a maximum torque of 280 Nm.
- Large working range: The clamping spread of up to 310 mm enables the processing of large-sized bearings and rings.

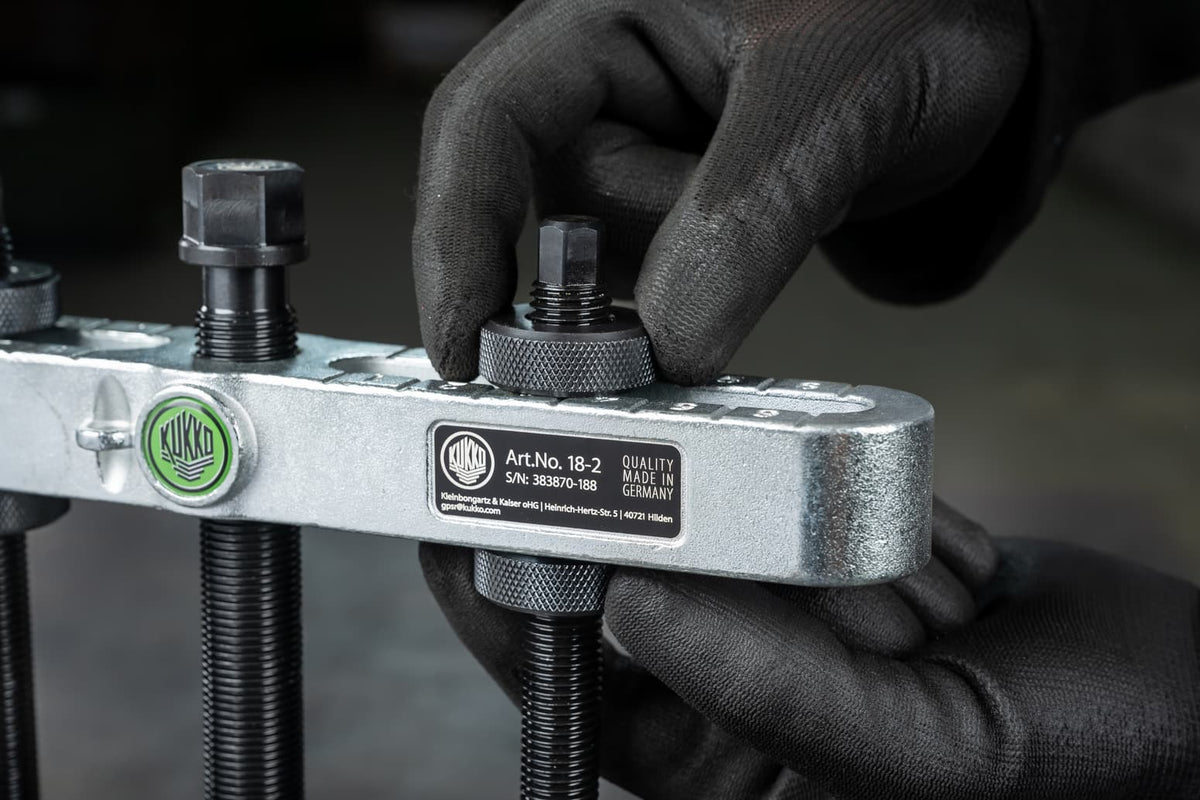

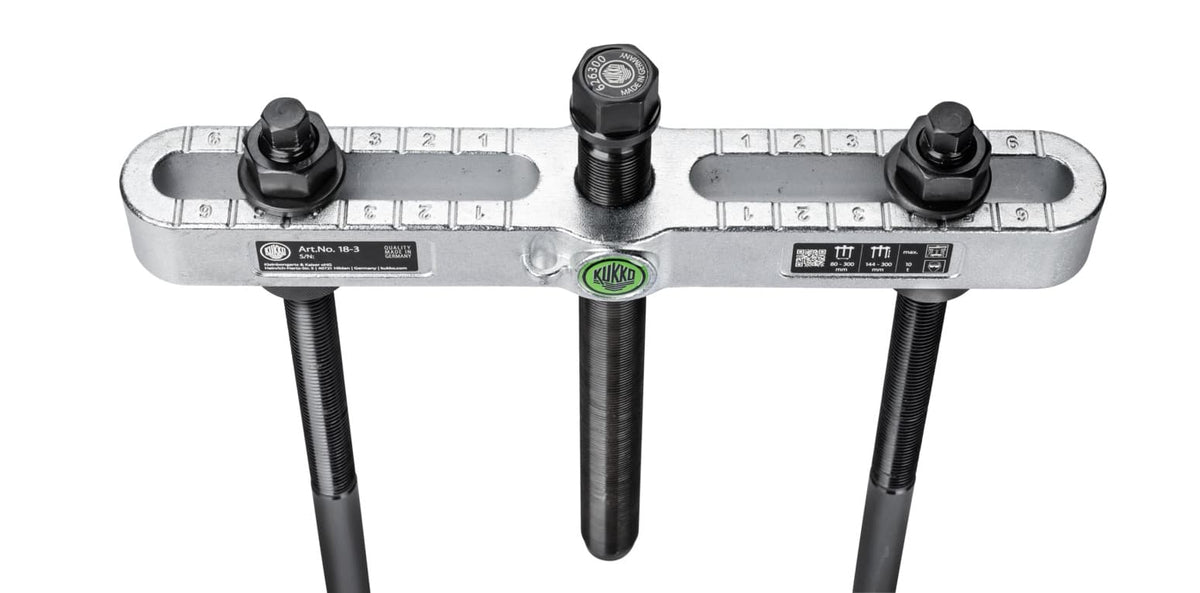

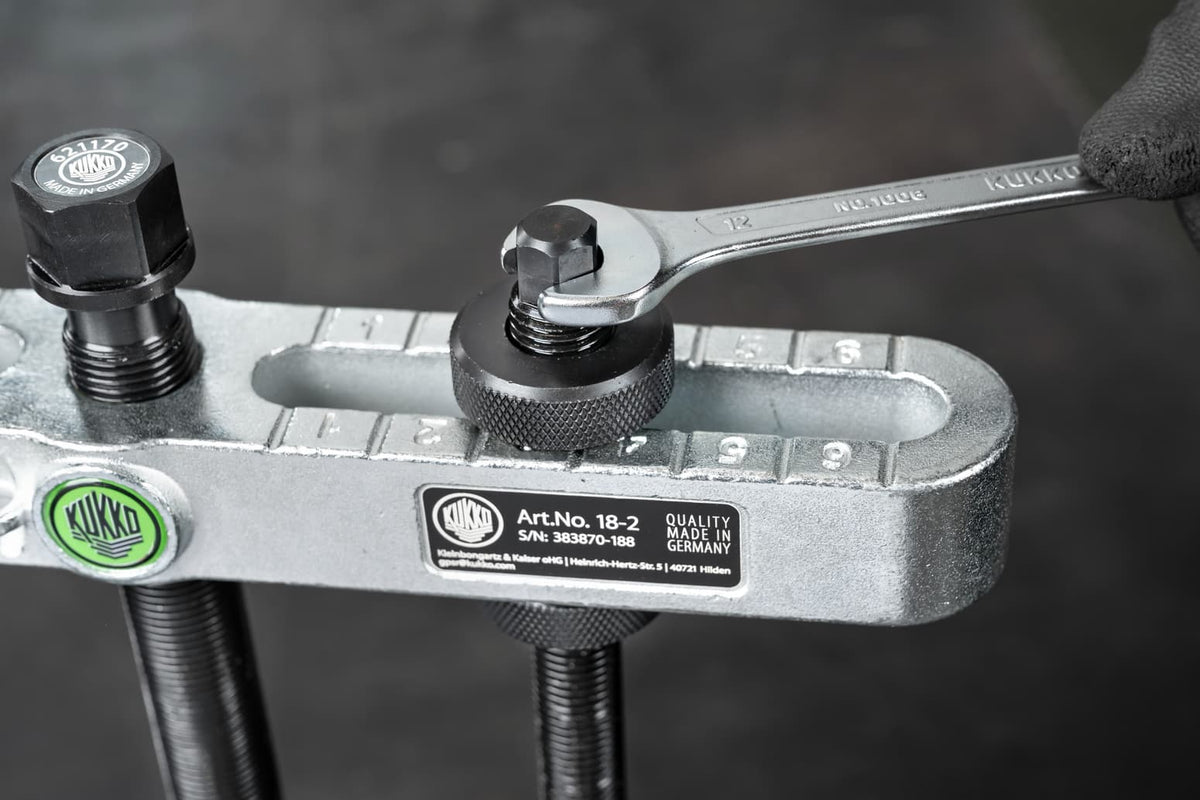

- Precision & Safety: The scale on the crossbeam guarantees symmetrical adjustment, while the 27 mm wrench flats on the tension bolts ensure a secure hold when counter-holding.
- Comprehensive compatibility: Perfectly matched to the separator 15-3 as well as various extensions and adapters.
Technical Data
| Clamping spread (min/max) | 75 – 310 mm |
|---|---|
| Clamping depth | 300 mm |
| Maximum tensile force | 10 t (100 kN) |
| Wrench size (Drive) | 27 mm |
| Mounting thread | M18x1.5 |
| Maximum torque | 280 Nm |
| Weight | 6.37 kg |
Rely on heavy-duty quality for the most demanding dismantling tasks.
