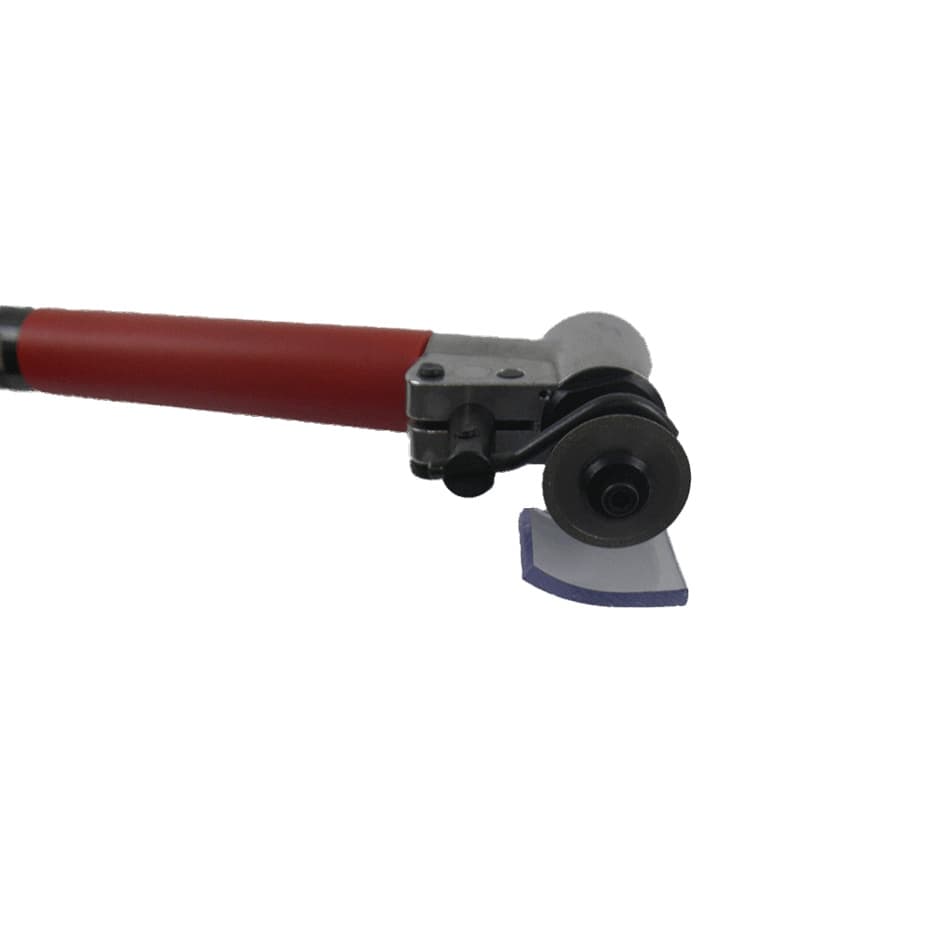

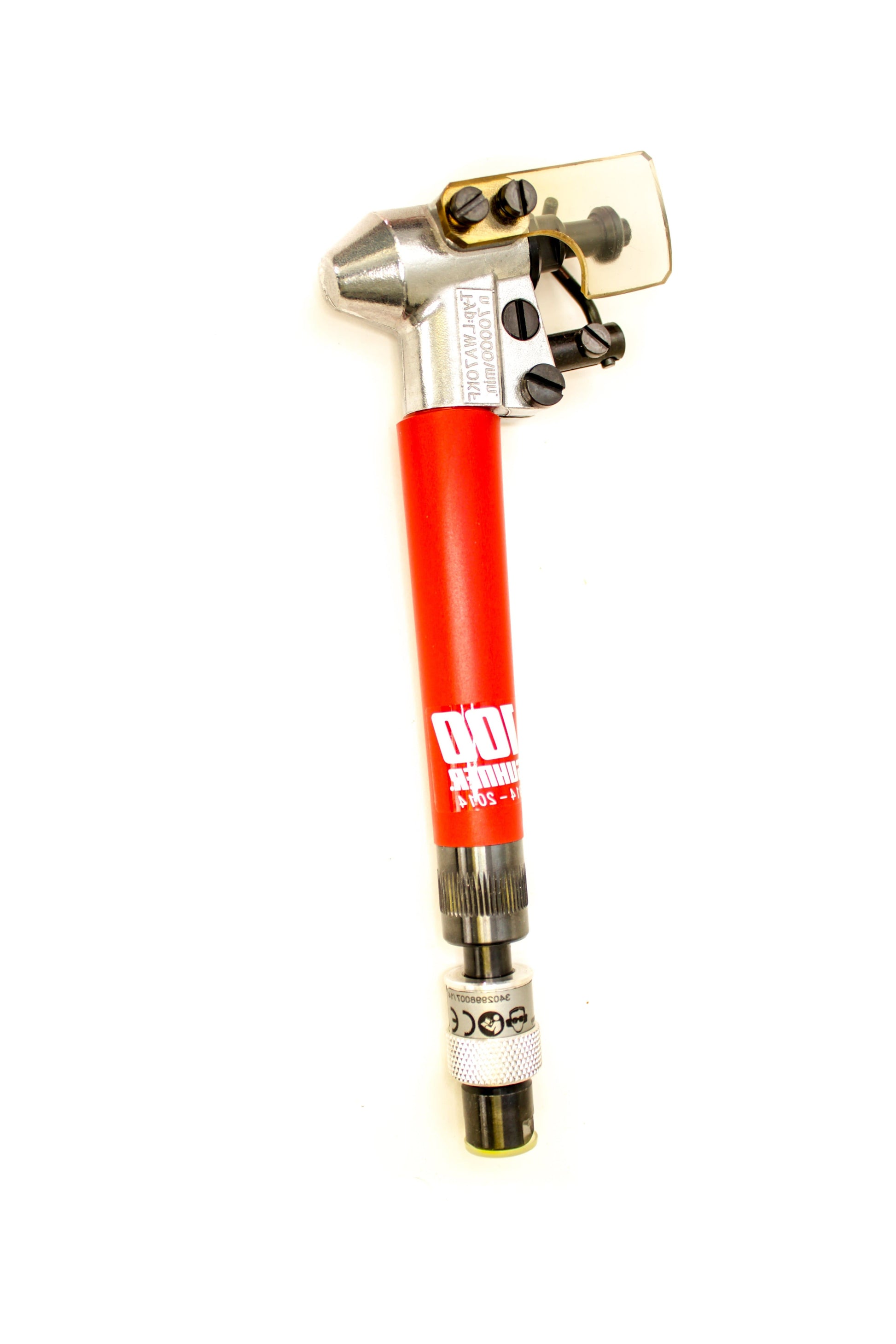

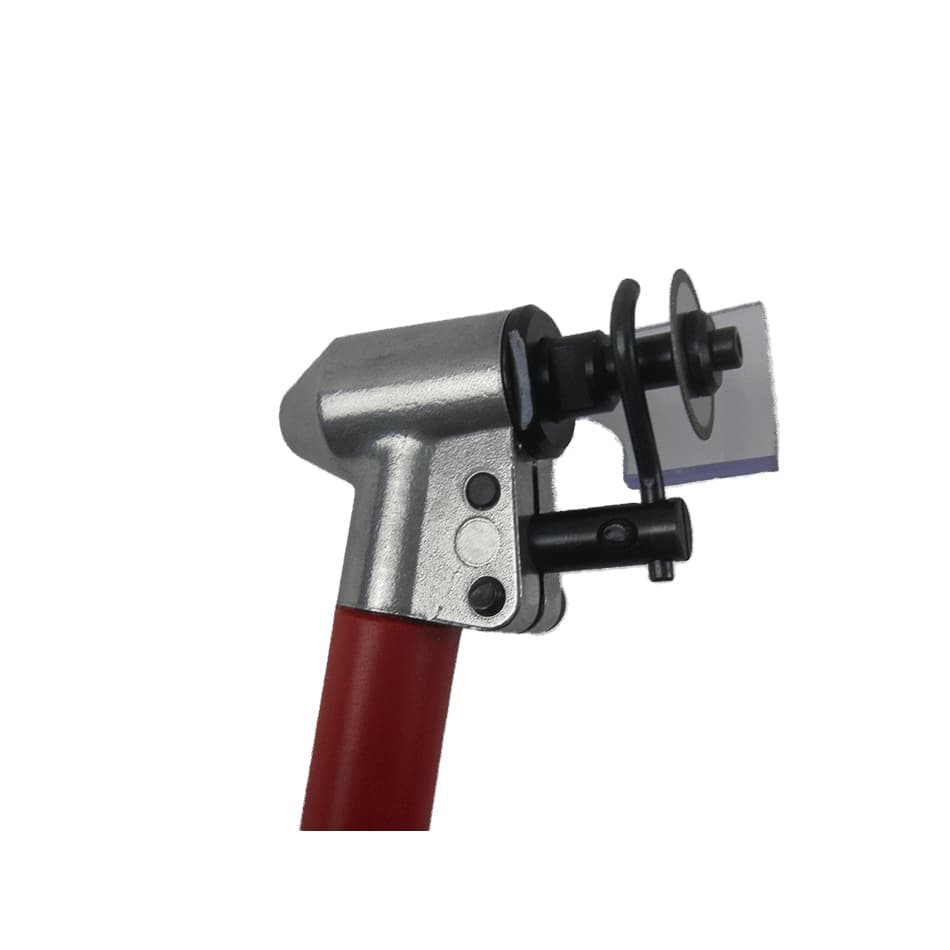

Compressed air collector milling machine
Smallest pneumatic angle grinder with a vane motor. Wear-resistant thanks to the lack of a gearbox. Built-in silencer with adjustable exhaust duct. Extremely handy design with adjustable depth stop for freehand operation.
Suitable for collectors with a diameter of approximately 30–400 mm. Vane motor with 70,000 rpm. Includes dust protection, without cutter or maintenance unit.

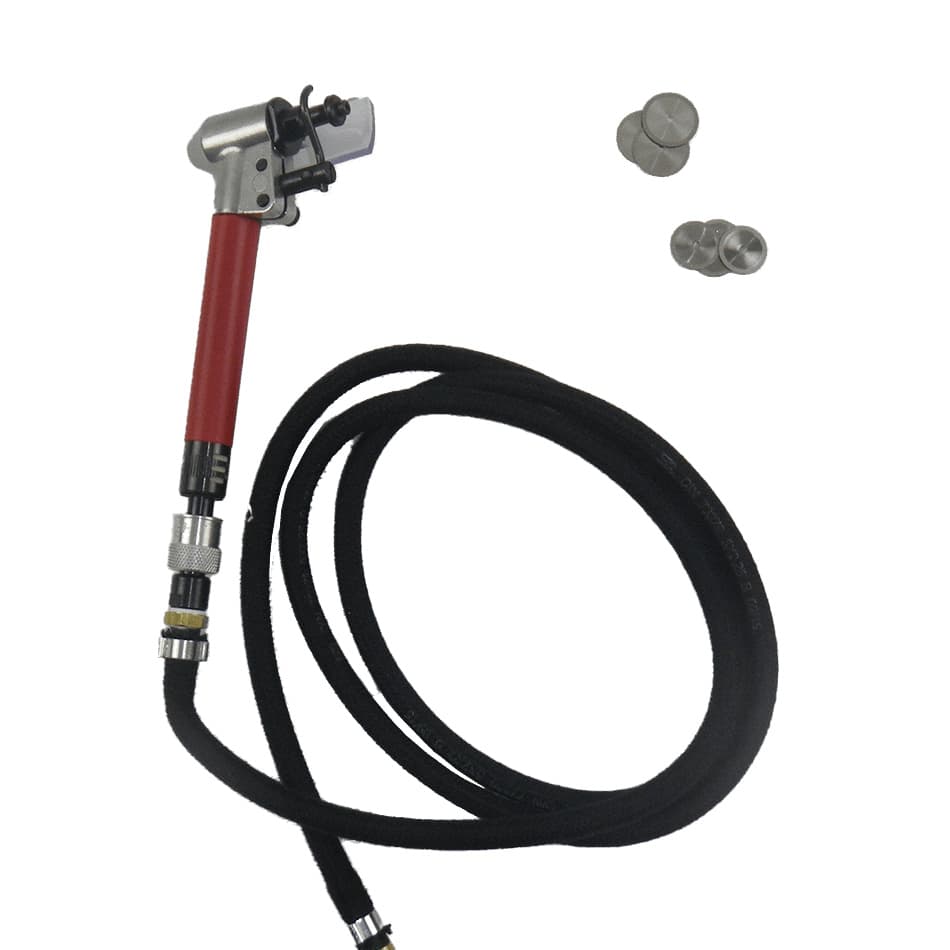

included in delivery:
- Pneumatic collector milling device for diamond discs with 3 mm bore
- 1.5 m pressure hose 5 mm Ø
- 1 hose nozzle 1/8" -5/6"
- 1 quick-coupling plug-in nozzle
- 2 terminals 6 mm Ø
Commissioning:
The machine operates with a rotary vane motor and is designed for an operating pressure of 6 bar.
A lower operating pressure reduces the speed and power, a significant overpressure leads to premature wear and excessive speed.
The prerequisite for maximum service life and consistent performance with this high-speed compressed air machine is the installation of a suitable maintenance unit consisting of a filter, pressure regulator and oil mist device.
|
Available diamond cutters: |
||
|
Order no. |
O |
Strength |
|
KFDF 1903 |
19 mm |
0.3 mm |
|
KFDF 1904 |
19 mm |
0.4 mm |
|
KFDF 1905 |
19 mm |
0.5 mm |
|
KFDF 1906 |
19 mm |
0.6 mm |
|
KFDF 1907 |
19 mm |
0.7 mm |
|
KFDF 1908 |
19 mm |
0.8 mm |
|
KFDF 1909 |
19 mm |
0.9 mm |
|
KFDF 1910 |
19 mm |
1.0 mm |
|
KFDF 2203 |
22 mm |
0.3 mm |
|
KFDF 2204 |
22 mm |
0.4 mm |
|
KFDF 2205 |
22 mm |
0.5 mm |
|
KFDF 2206 |
22 mm |
0.6 mm |
|
KFDF 2207 |
22 mm |
0.7 mm |
|
KFDF 2208 |
22 mm |
0.8 mm |
|
KFDF 2209 |
22 mm |
0.9 mm |
|
KFDF 2210 |
22 mm |
1.0 mm |
