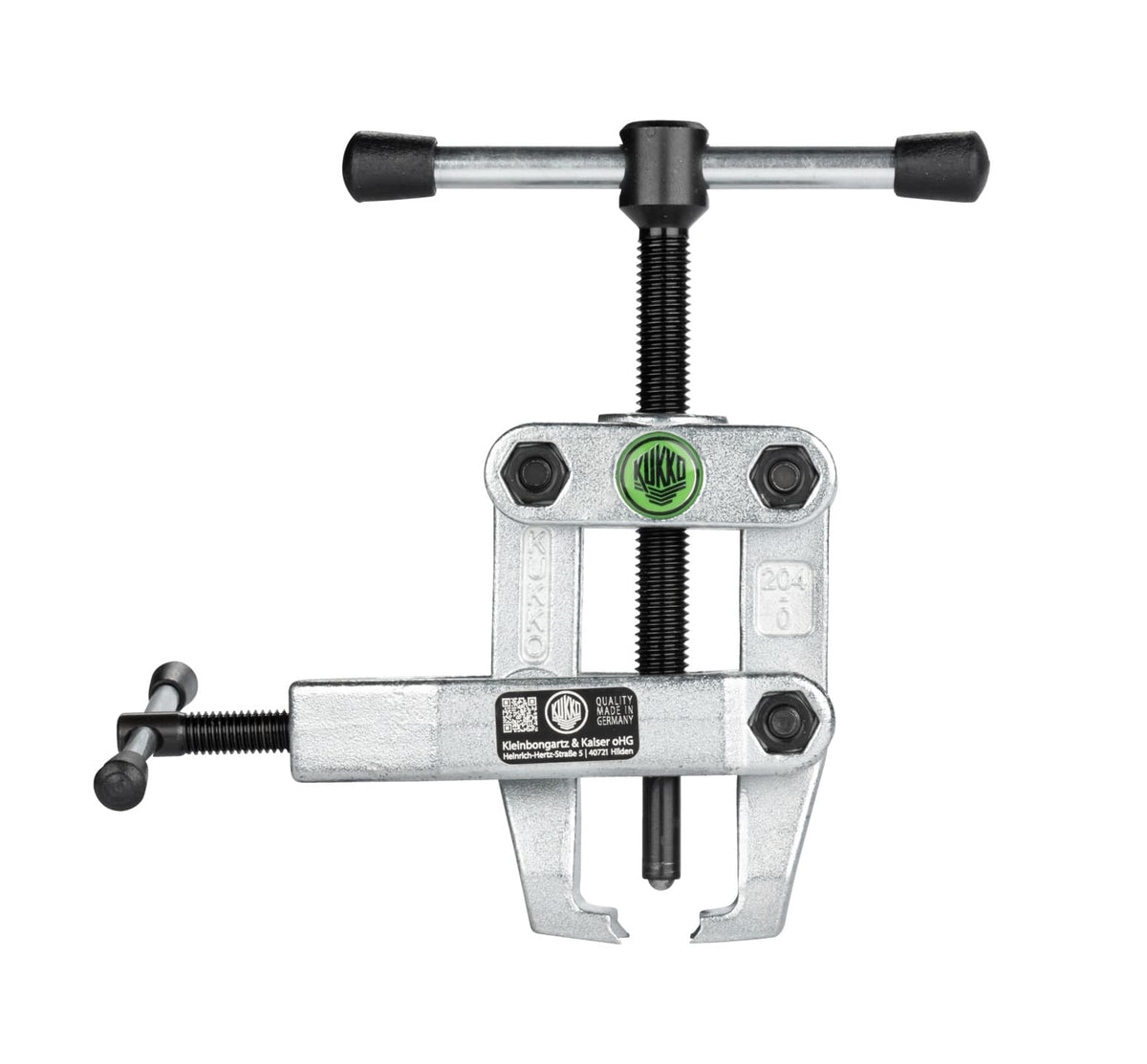

"Cobra" Bearing Puller 204-0 (12–50 mm) with Clamp
The 2-jaw "Cobra" bearing puller 204-0 is a specialized tool for tricky situations where bearings, rings, or workpieces sit flush. With a clamping spread of 12 mm to 50 mm, this model combines the function of a puller with that of a separator. The innovative lateral clamp ensures that the pulling jaws are pressed firmly under the component even before the actual pulling begins.
Product Benefits & Application
The "Cobra" technology effectively prevents the hooks from slipping. By tightening the lateral clamp, the wedge-shaped claws dig under the part and loosen it from its seat. This makes the 204-0 the ideal choice for precise dismantling in tight installation spaces.

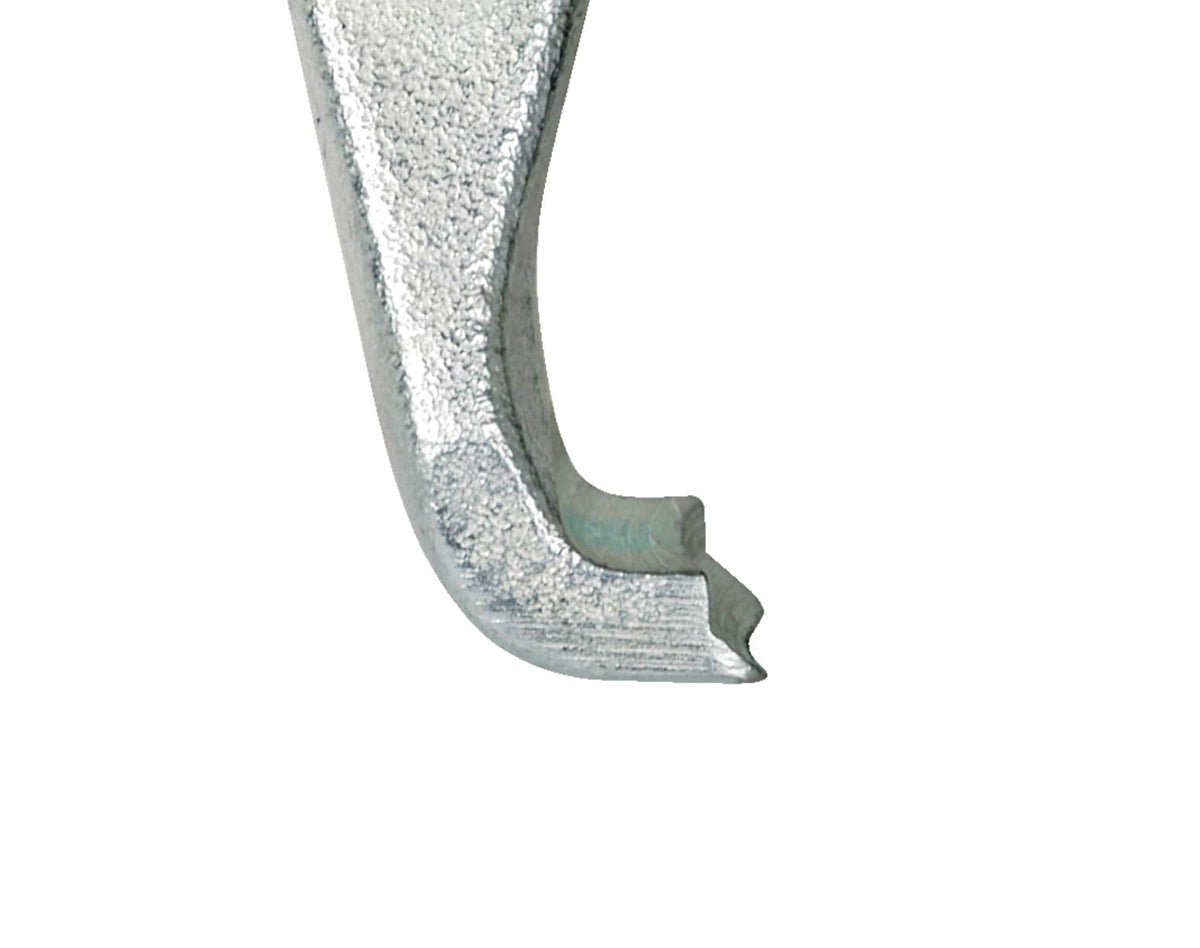

- Integrated separating claw: The special hook shape loosens flush-fitting parts as soon as the clamp is fixed.
- Maximum hold: The clamp multiplies the contact pressure of the jaws and guarantees a non-slip connection.
- Ergonomic operation: The T-handle with a freely moving pin enables comfortable, one-handed working even in the tightest spaces.
- Compact power: Despite the low weight of 0.69 kg, the puller delivers a tensile force of up to 1 ton (10 kN).
- Sustainability: Transparent CO₂ value (0.9) and global distribution capability (REACH, RoHS compliant).
Technical Data
| Clamping spread (min/max) | 12 – 50 mm |
|---|---|
| Clamping depth | 70 mm |
| Maximum tensile force | 1 t (10 kN) |
| Drive | T-handle |
| Weight | 0.69 kg |
Rely on "Cobra" technology for a secure hold on flush-fitting parts.
