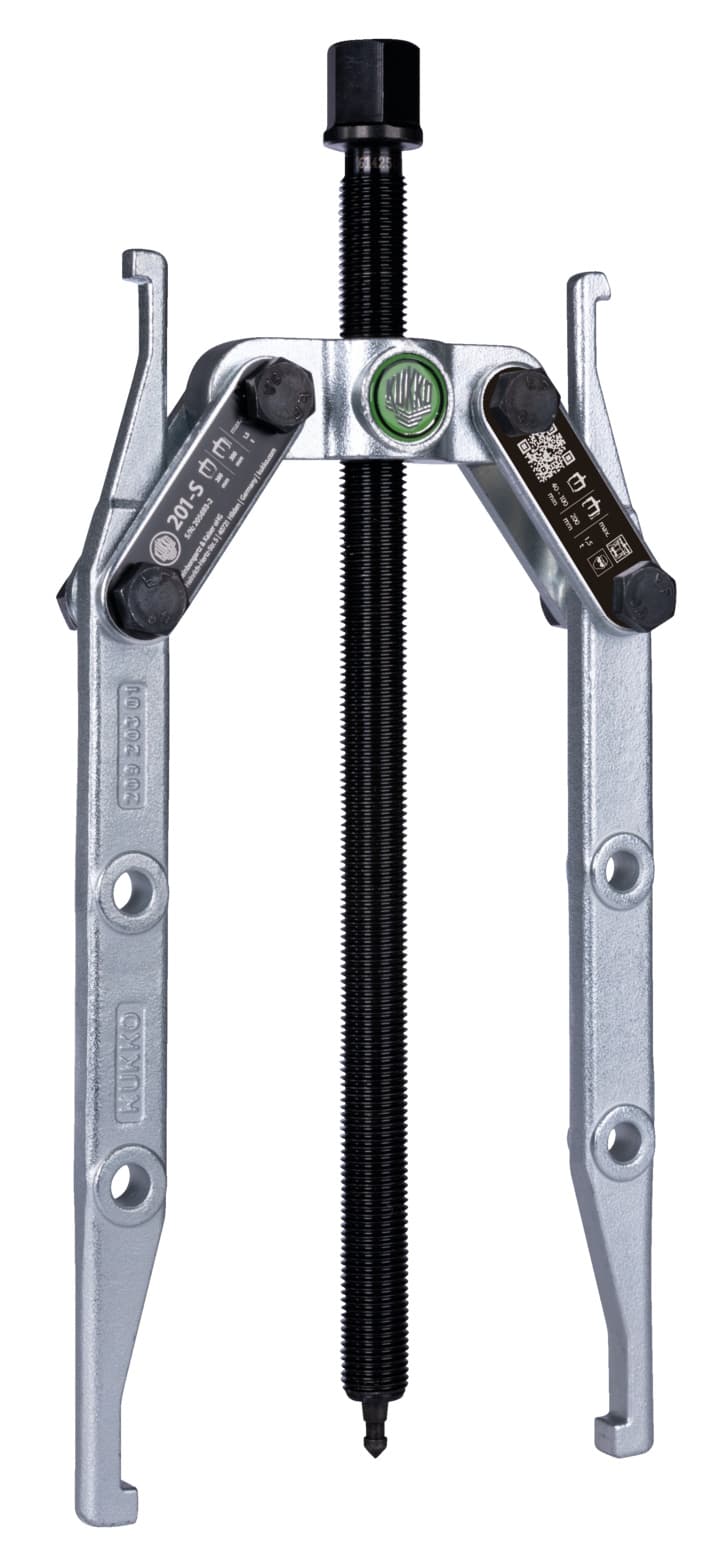

Link Puller 201-S (200 mm) for Fan Wheels & Propellers

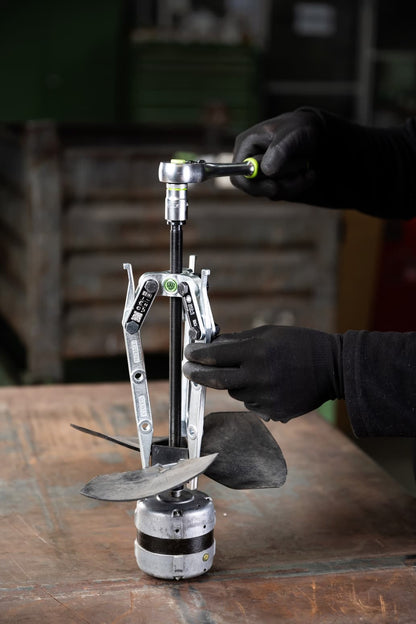

The 2-jaw link puller 201-S is a specialized tool for crafts, workshops, and industry. It was specially developed to safely dismantle fan wheels and propellers. Thanks to its particularly slender design, the pulling jaws reach effortlessly through the slots of the component to securely grasp the collar. With a clamping spread of 11 mm to 200 mm and a clamping depth of 200 mm, it offers maximum flexibility.
Product Benefits & Application
This puller adapts to every installation situation. The oscillating and height-adjustable pulling jaws ensure that even hard-to-reach parts can be reached without damaging the surroundings.
- Specialized design: Ideal for parts with slots, such as fan wheels or propellers.

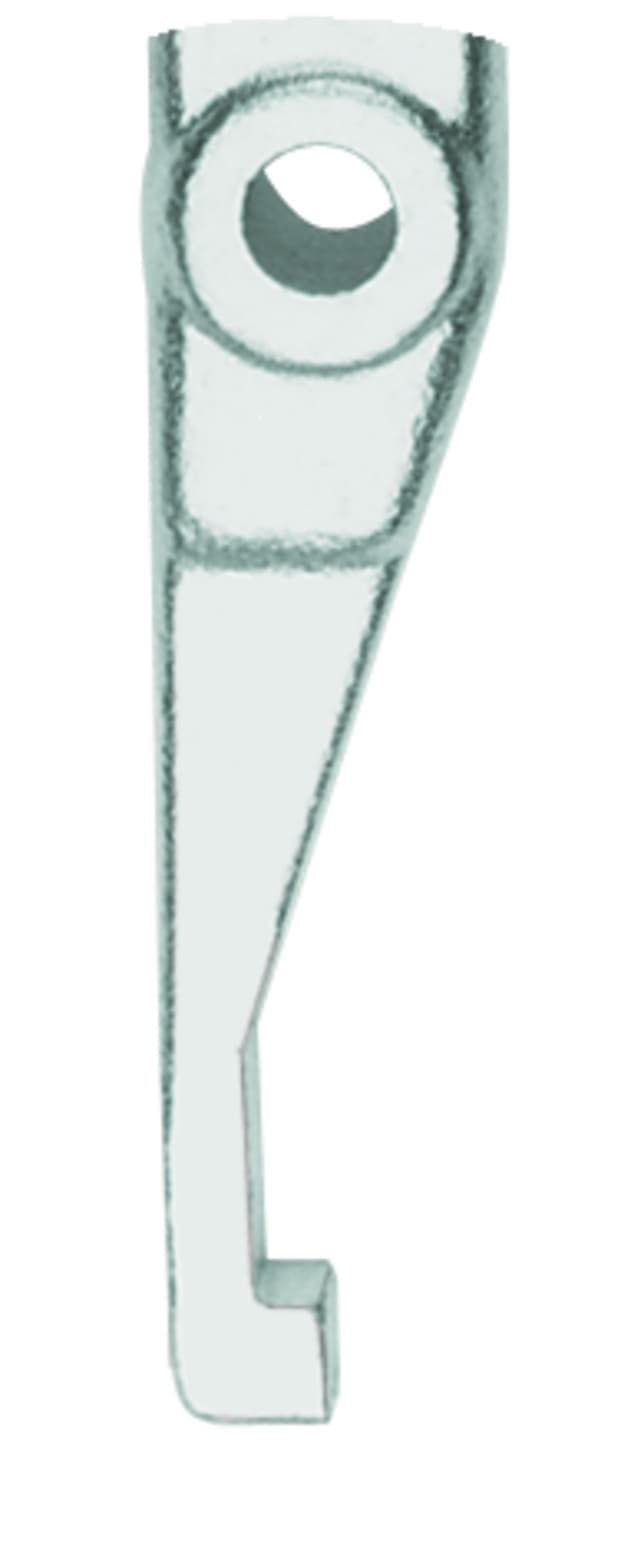

- Maximum flexibility: The pulling jaws are oscillating, height-adjustable, and rotatable by 180° (reversible for different claw sizes).
- Slender design: Enables use even in confined spaces.
- Performance data: Designed for a tensile force of 1.5 tons (15 kN) at a torque of 30 Nm.
- Sustainability: Certified global distribution capability (REACH, RoHS, POP, PROP65, TSCA).
Technical Data
| Clamping spread (min/max) | 11 – 200 mm |
|---|---|
| Clamping depth | 200 mm |
| Maximum tensile force | 1.5 t (15 kN) |
| Wrench size (Drive) | 17 mm |
| Maximum torque | 30 Nm |
| Weight | 1.16 kg |
Use specialized tools for precise results when maintaining ventilation systems and drives.
