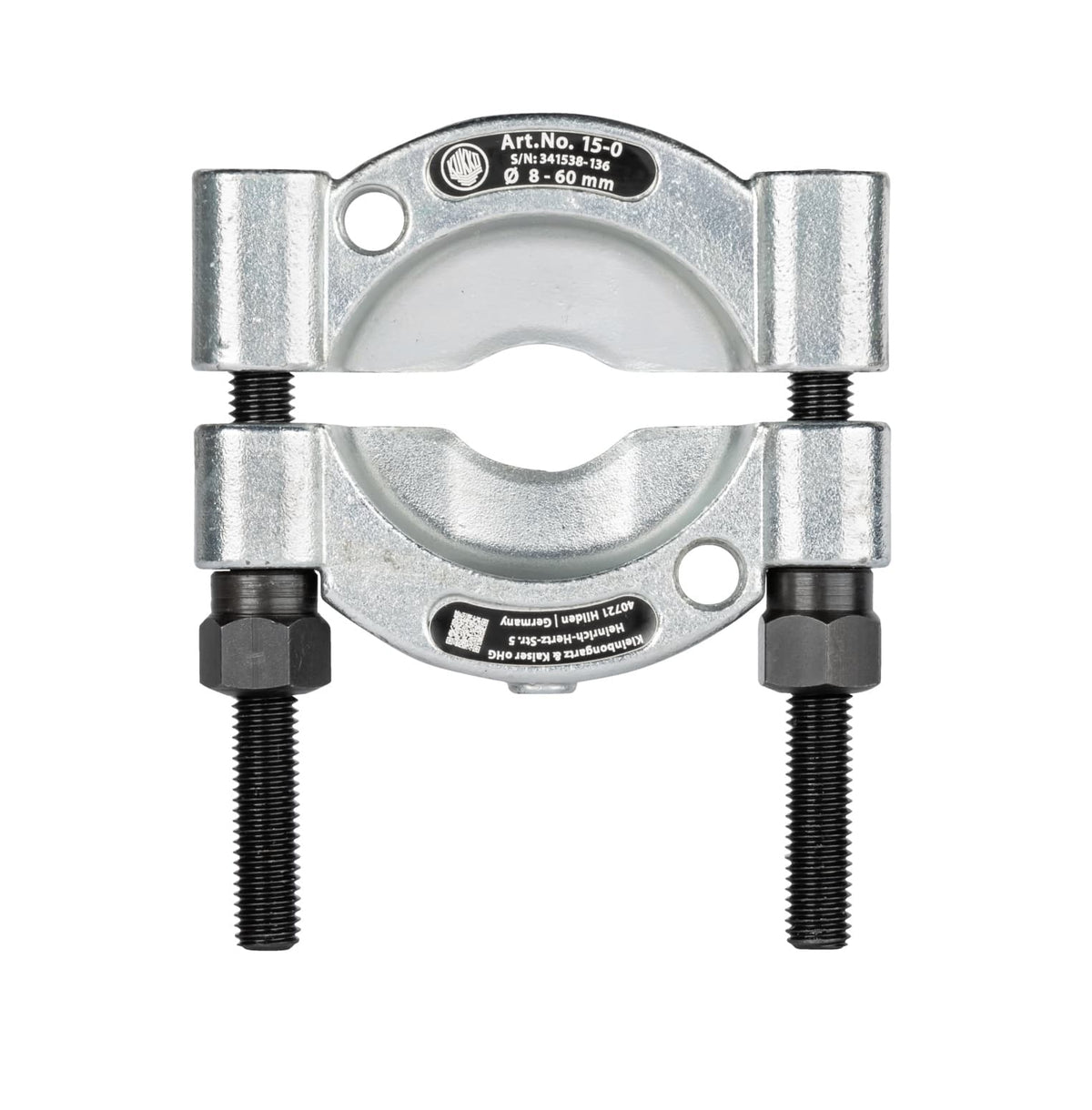

Separator 15-0 (8–60 mm) for Flush-Fitting Parts
The Series 15 separator is the specialized solution for dismantling work where conventional pulling hooks reach their limits due to a lack of space. With a separating diameter of 8 mm to 60 mm, the model 15-0 is ideally suited for the gentle removal of flush-fitting ball bearings, roller bearings, and inner rings in crafts and industry.
Product Benefits & Application
This process combines separating and pulling to safely remove components without damaging the shaft or the workpiece. The sharp, wedge-shaped blades are pressed under the part to be pulled to first loosen it before it is pulled off in the second step.
- Problem solver for lack of space: Perfect for close-fitting parts where no hook can engage.
- System compatibility: Optimized for use with pulling devices of series 18 (size 18-0).
- High precision: 21 mm usable blade depth ensures a secure hold during the separating process.
- Sustainability: Transparent CO₂ footprint and global distribution capability (REACH, RoHS compliant).
Technical Data
| Separating diameter (min/max) | 8 – 60 mm |
|---|---|
| Usable blade depth | 21 mm |
| Mounting thread (Bolt) | M10 |
| Wrench size (Drive) | 17 mm |
| Weight | 0.69 kg |
| Distance between side bolts | 39.5 mm |
| Minimum gap height | 0.3 mm |
Trust in durable tool quality for your workshop.
