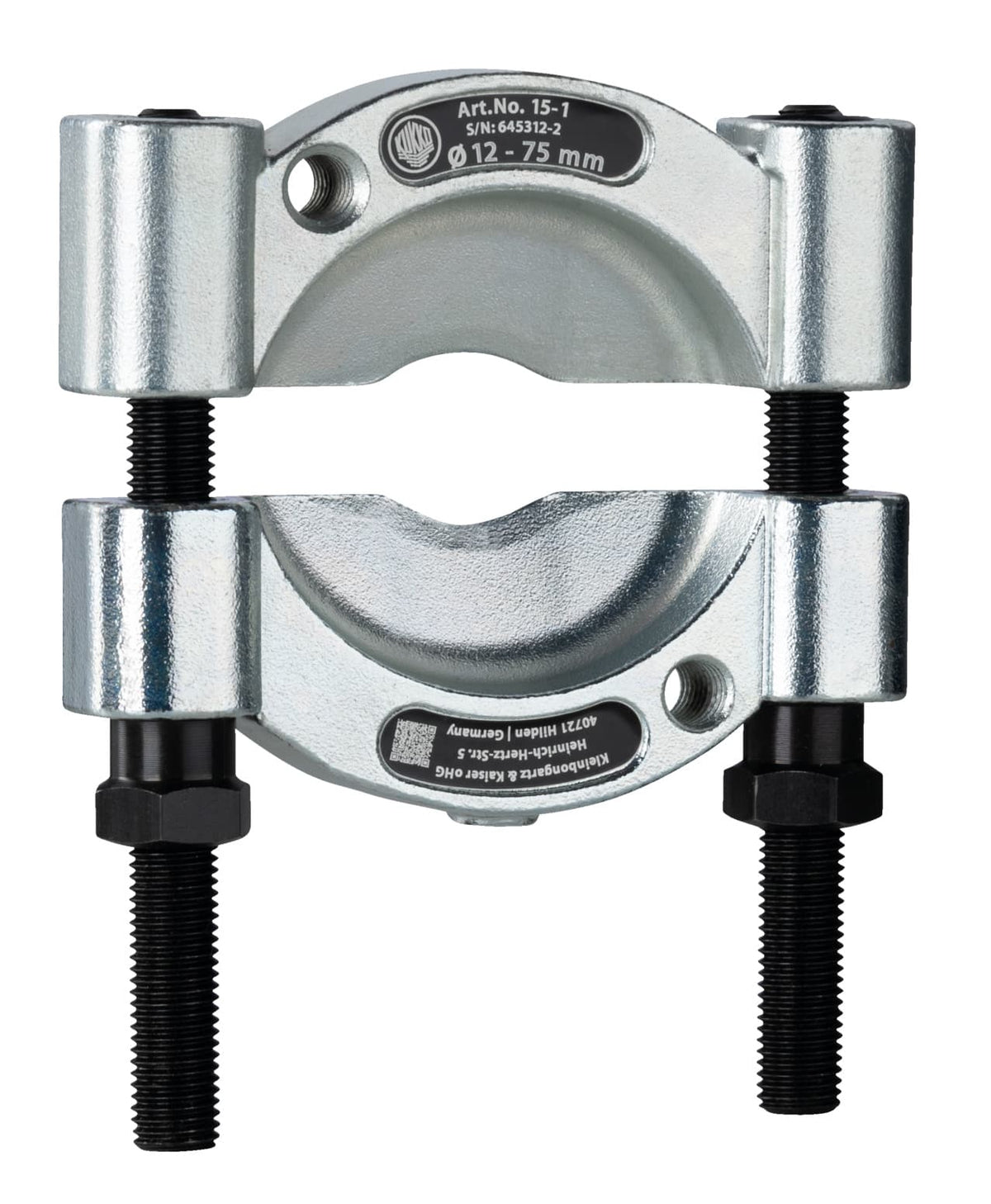

Separator 15-1 (12–75 mm) for Close-Fitting Parts
The Separator 15-1 is designed for professional use to safely remove flush-fitting parts such as ball bearings, roller bearings, and inner rings. With an extended clamping range of 12 mm to 75 mm, this tool is the ideal solution when conventional pulling hooks cannot be applied due to a lack of space.
Product Benefits & Application

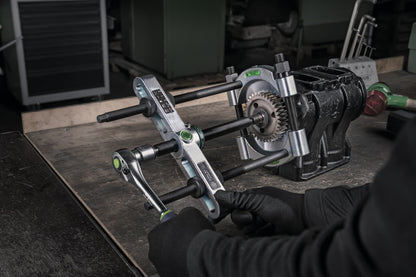

The special separating-pulling process protects both the workpiece and the shaft. The wedge-shaped blades are driven under the component to loosen it from the seat before it is pulled off in combination with a pulling device.
- Extended application range: Ideal for diameters from 12 to 75 mm in crafts and industry.
- System compatibility: Perfectly matched to the pulling devices of series 18 (size 18-1).
- Powerful and stable: Robust construction with 25 mm usable blade depth for seized parts.
- Sustainability: Certified global distribution capability (REACH, RoHS, POP, PROP65, TSCA) and transparent CO₂ footprint.
Technical Data
| Separating diameter (min/max) | 12 – 75 mm |
|---|---|
| Usable blade depth | 25 mm |
| Mounting thread (Tension bolt) | M10 |
| Wrench size (Drive) | 19 mm |
| Weight | 1.15 kg |
| Distance between side bolts | 43 mm |
| Minimum gap height | 0.5 mm |
Rely on precision tools for demanding dismantling tasks.
