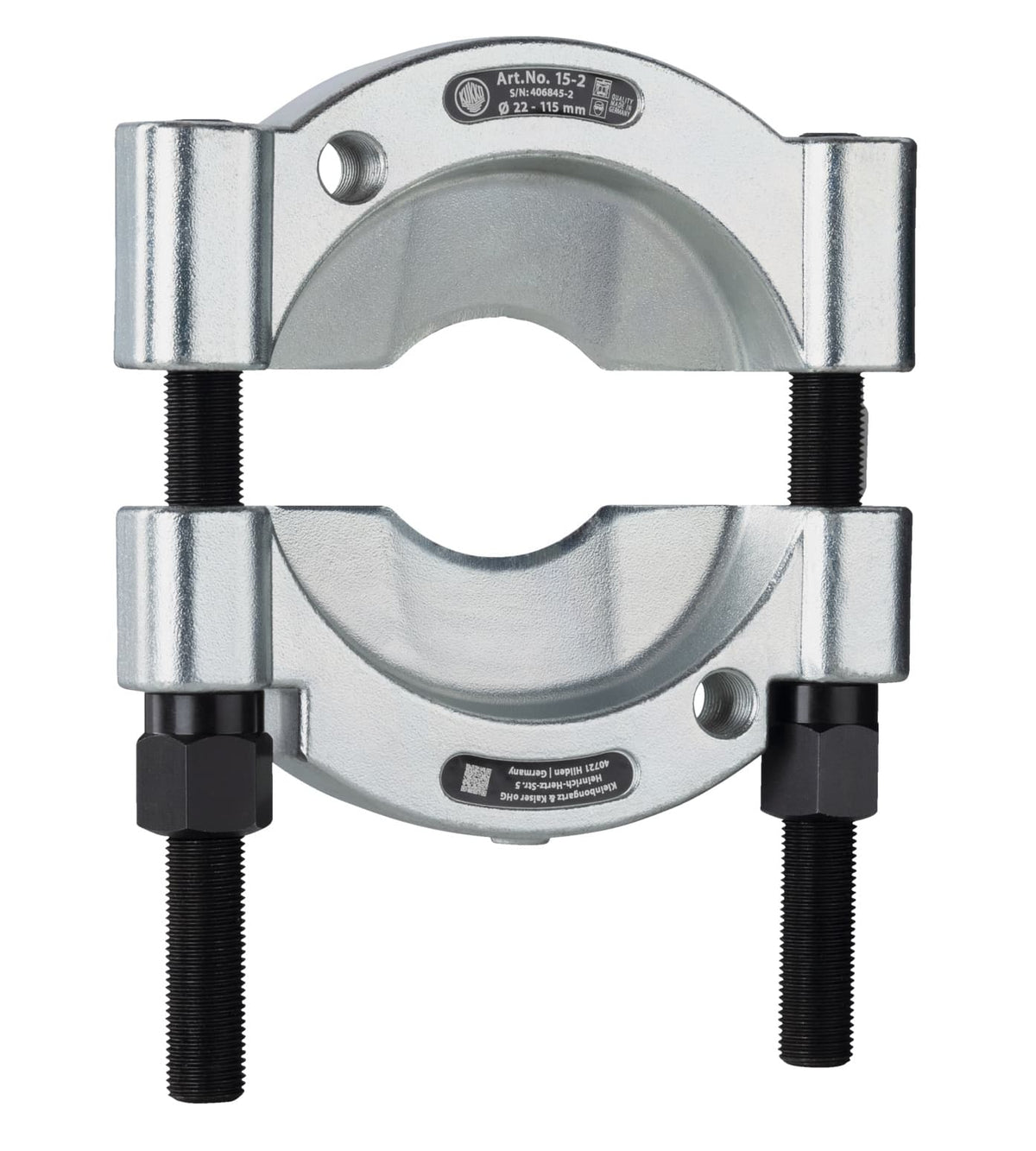

Separator 15-2 (22–115 mm) for Flush-Fitting Parts
The Separator 15-2 is the powerful solution for dismantling work in the medium size range. With a separating diameter of 22 mm to 115 mm, it enables the non-destructive removal of tightly seated ball bearings, roller bearings, and inner rings where conventional pulling hooks cannot grip due to lack of space.
Product Benefits & Application
Through the combined separating-pulling process, the wedge-shaped blades of the device are pressed under the component. This gently loosens the part from its seat before it can be safely pulled off. This method protects both the shaft and the workpiece from damage.
- Large clamping range: Flexibly applicable for diameters from 22 to 115 mm in industry and workshops.
- Perfect system matching: Ideally combinable with the pulling devices of series 18 (models 18-2 and 18-2-B).
- High stability: Designed for demanding tasks with 41 mm usable blade depth and a weight of 2.90 kg.
- Precision: The minimum gap height of 0.5 mm allows for application even in extremely tight gaps.
Technical Data
| Separating diameter (min/max) | 22 – 115 mm |
|---|---|
| Usable blade depth | 41 mm |
| Mounting thread (Tension bolt) | M14x1.5 |
| Wrench size (Drive) | 24 mm |
| Weight | 2.90 kg |
| Distance between side bolts | 67 mm |
| Minimum gap height | 0.5 mm |
Invest in professional tools for safe and efficient dismantling processes.
