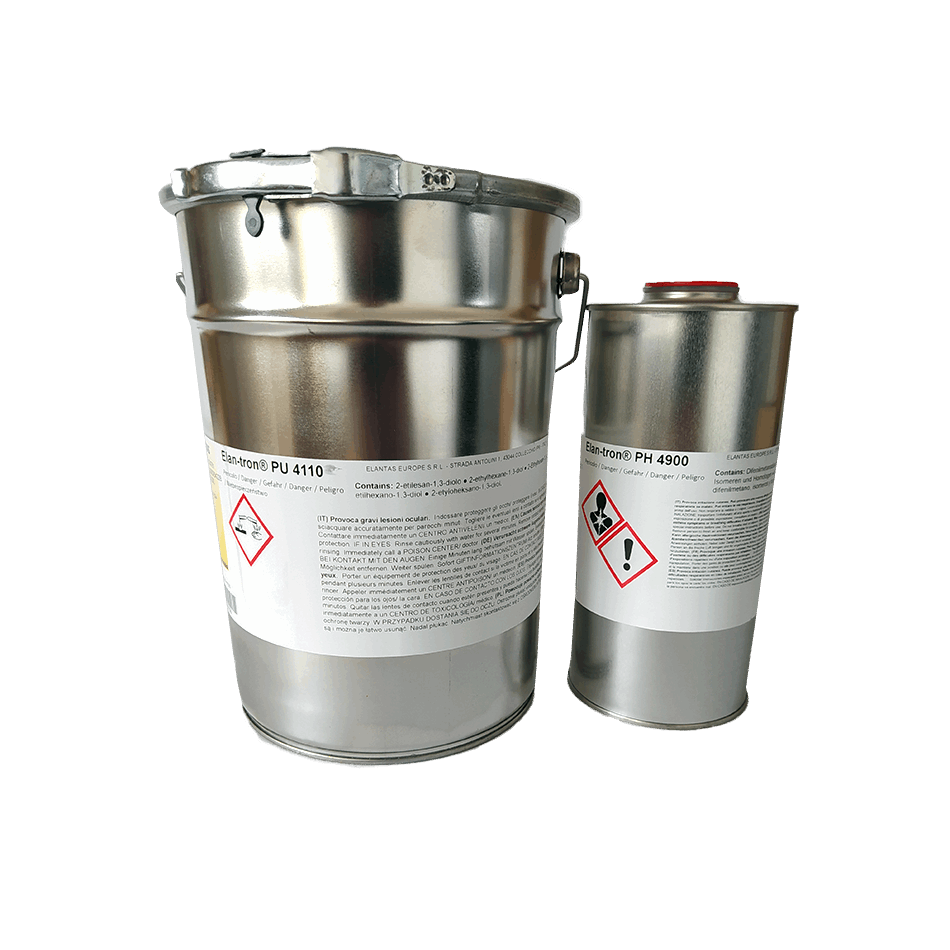

Polyurethane casting compound Elan-tron® PU 4110 with hardener PH 4900 or PH 4920

Highly elastic modified polyurethane with high temperature resistance

Application:
Due to its excellent low-temperature flexibility, extremely high adhesion to many different surfaces and the relatively high temperature index of 150°C, Elan-tron® PU 4110 is particularly suitable for use in devices that are used in the temperature range from -50 to 150°C. It is therefore particularly suitable for casting pressure-sensitive components for outdoor applications and explosion-proof areas. Due to its high chemical resistance, Elan-tron® PU 4110 is also very suitable for using the components cast with it in moist, alkaline and acidic environments (e.g. silos).

Description:
Mixing ratio: 100:20
Hardener: Elan-tron® PH 4900 or Elan-tron® PH 4920
Curing conditions: at room temperature 6-8 h
Resin color: white-beige
Color of hardener: brown transparent

Container size:
Resin: R PU 4110-5 in a 5 kg container
Hardener: R PU 4900-1 in a 1 kg container and R PU 4900-10 in a 10 kg container and R PU 4900-35 in a 35 kg container
Hardener: R PU 4920-1 in a 1 kg container and R PU 4920-10 in a 10 kg container and R PU 4920-35 in a 35 kg container

Special features:

• Molding material with rubber-like properties
• Low shrinkage
• Very good dielectric properties
• Very good adhesion
• Flexible to cold temperatures down to -50°C
• High permanent temperature resistance 150°C
